Product Details:
|
| Detection Gas: | VOC, Energy ≤10.6eV Volatile Gas | Accuracy: | ≤±2% No Condensation |
|---|---|---|---|
| Operating Voltage: | 3.2~5.5V | Humidity: | 0~99% No Condensation |
| Zero Voltage: | U0>20mV | ||
| Highlight: | VOCs Detection Photoionization PID Sensor,High Performance Photoionization PID Sensor |
||
Product Description:
4R-PID-10.6ev High Performance Photoionization PID Sensor For VOCs Detection Environmental Quality Monitoring
Features:
Product details

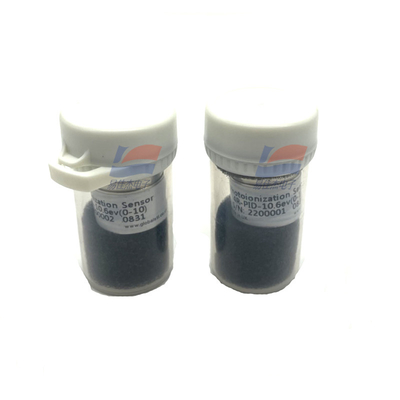

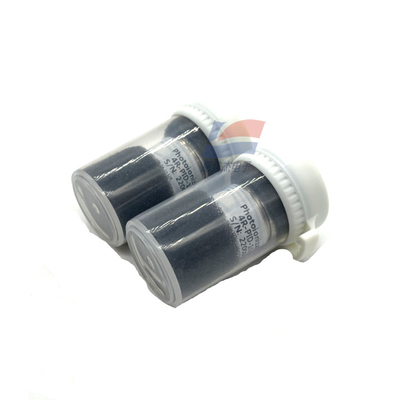

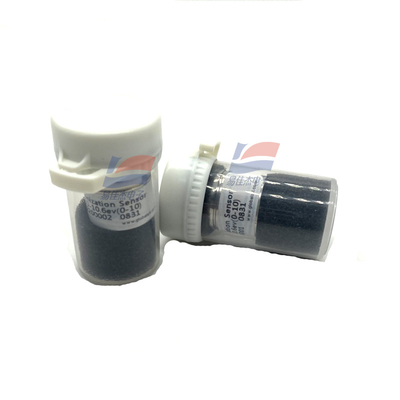

4R-PID is a high performance photoionization PID sensor. The sensor has the characteristics of high sensitivity, wide range and broad spectrum, and can detect thousands of volatile organic compounds (VOCs) and some inorganic vapors in different applications, and can provide a detection range of up to 10000ppm and a minimum detection limit of 1ppb, with extremely fast response speed and extremely high resolution. It can be used for all kinds of hand-held portable, field fixed instruments, and can also be applied to various types of analytical instruments.
Product advantage
High sensitivity
wide-range
Fast response time
High stability
Long service life
High-end imported technology
Main application
Emergency response, Industrial hygiene, personnel safety, VOCs detection, environmental quality monitoring, petroleum and petrochemical safety, soil pollution and control
Detection gas: VOC, energy ≤10.6eV volatile gas
Accuracy: ≤±2% no condensation
Operating voltage: 3.2~5.5V
Humidity: 0~99% no condensation
Zero voltage: U0>20mV
Working pressure :800~1200 mbar
Output signal voltage: 0.02~ 2.0V (Max. 3.0V)
Storage temperature: 0~25℃
Response time: (T90) ≤5s
Operating temperature :-20~50 ℃
Service life: 3 years (excluding lamp and electrode)
Warranty period :12 months (excluding lamp and electrode)
Specifications:
| Working pressure | 800~1200 mbar |
| Output signal voltage | 0.02~ 2.0V (Max. 3.0V) |
| Storage temperature | 0~25℃ |
| Response time | (T90) ≤5s |
