Product Details:
|
| Operating Voltage: | 3.0V | Working Current: | ≤25mA |
|---|---|---|---|
| Maximum Heating Power: | 80mW | Range: | 5ppm |
| Output Mode: | I2C Slave Mode The Default | ||
| Highlight: | ZM01 Digital MEMS VOC Sensor,Environmental Safety Digital MEMS VOC Sensor,Portable Instruments Digital MEMS VOC Sensor |
||
Product Description:

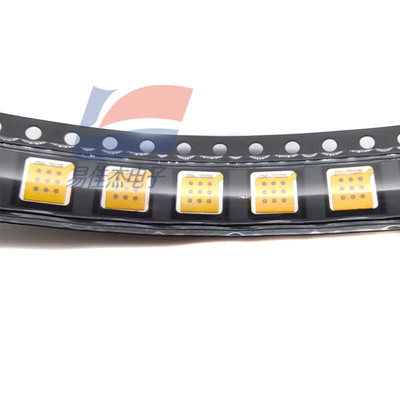

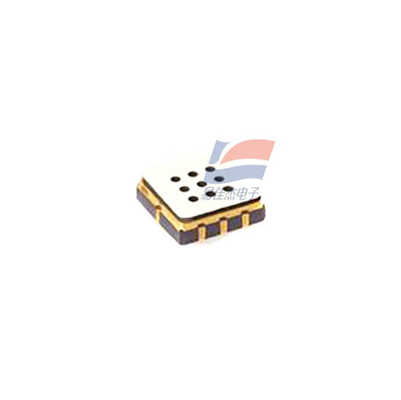

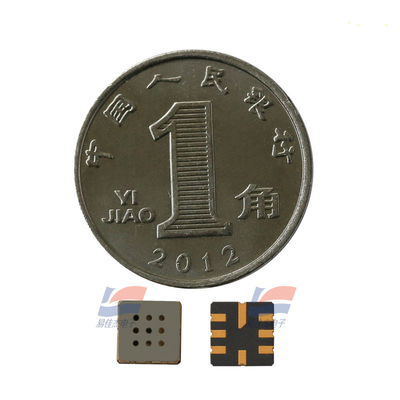

ZM01 Digital MEMS VOC Sensor Is Used In The Field Of Environmental Safety Portable Instruments
Features:
ZM01 VOC sensor uses a MEMS process to fabricate a micro-hot plate on a Si substrate, using a gas-sensitive material that is metal-oxide semiconductor material with low conductivity in clean air. When there is a sensitive gas environment at the sensor, the conductivity of the sensor changes with the concentration of the detected gas in the air. The higher the concentration of this gas, the higher the conductivity of the sensor. The sensor has high sensitivity, small size and precision, adopts I2C digital signal output mode, which is convenient for multiple sensor networking observation, and presets a pin as alarm trigger signal output, which can be widely used in environmental security, portable instruments and many other fields.
Product advantage
MEMS process, stable and reliable, ultra-low power consumption, high sensitivity, anti-electromagnetic interference
Main application
Environmental monitoring, portable instruments, medical hygiene, field control
Specifications:
| Operating voltage | 3.0V |
| Working current | ≤15mA |
| Maximum heating power | 80mW |
| Range | 5ppm |
