Product Details:
|
| Product Type: | Carrier Catalytic Gas Sensor | Standard Package: | Plastic Package |
|---|---|---|---|
| Operating Voltage (V): | 2.5±0.1 | Working Current (mA): | 150±10 |
| Highlight: | MC105 Carrier Catalytic Gas Sensor,Industrial Field Gas Sensor |
||
Product Description:

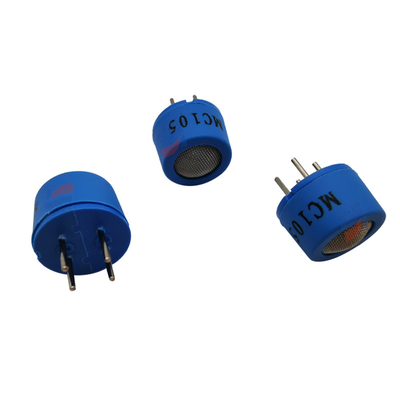

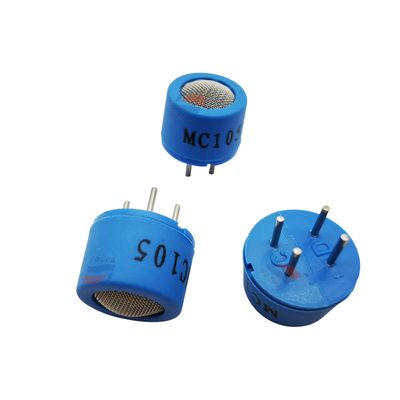

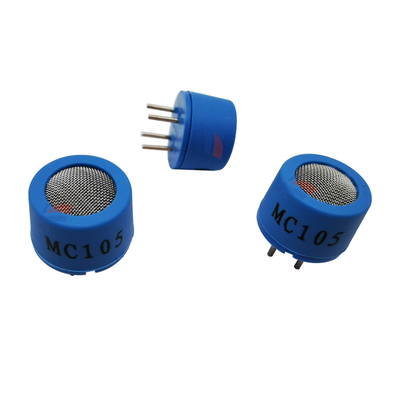

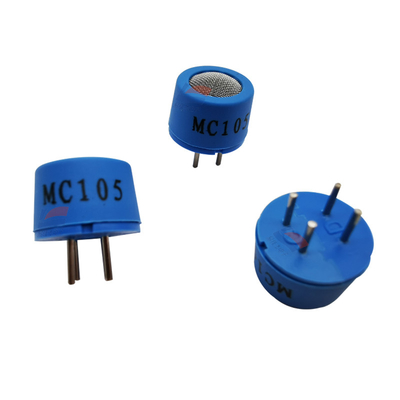

MC105 Carrier Catalytic Gas Sensor Is Used To Detect The Concentration Of Gas Alkanes In Industrial Field
Features:
MC105 catalytic element works according to the principle of catalytic combustion effect, and is composed of two arms of the bridge composed of detecting element and compensating element. When the combustible gas is met, the resistance of the detecting element increases, and the output voltage of the bridge changes. The voltage variable increases directly with the increase of gas concentration.
Product advantage
The bridge output voltage is linear
Fast response speed
It has good repeatability and selectivity
The components work stably and reliably
Excellent resistance to H2S and silicone poisoning
Main application
The black and white element can be used to detect the concentration of flammable gases such as natural gas, liquefied gas, gas, alkanes and organic solvent vapors such as gasoline, alcohol, ketone and benzene in industrial sites. Flammable gas leak alarm; Combustible gas detector; Gas concentration meter.
Specifications:
| 1% methane | 20~45 |
| 1% butane | 25~45 |
| 1% hydrogen | 20~40 |
| Linearity (%) | ≤5 |
