Product Details:
|
| Measuring Range: | 0~100%vol | Operating Voltage (V): | 3.0±0.1 |
|---|---|---|---|
| Working Current (mA): | @100 | 10% Methane: | >12 |
| Highlight: | MD62 Gas Sensor,Civil Industrial Site Gas Sensor,Heat Conduction Gas Sensor |
||
Product Description:

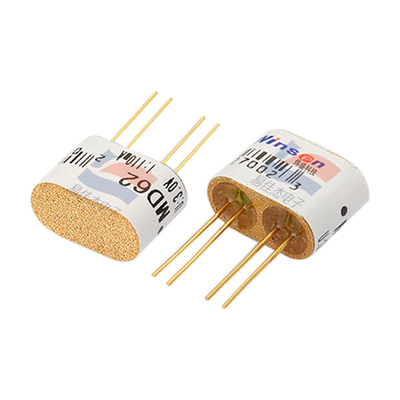

MD62 0-100%VOL Heat Conduction Carbon Dioxide Gas Sensor Civil Industrial Site Carbon Dioxide And Other Combustible Gas Detection
Features:
MD62 gas sensor is based on the principle that the total thermal conductivity of the mixed gas changes with the different gas content to be analyzed
Made by the detection element and the compensation element are paired to form the two arms of the bridge, and the resistance of the detection element becomes smaller when the combustible gas is encountered.
In the case of non-flammable gas, the resistance of the detection element becomes larger (air background), and the bridge output voltage variable depends on the gas
The concentration increases in direct proportion, and the compensation element acts as reference and temperature compensation.
peculiarity
Wide detection range (0-100% VOL)
The bridge output voltage is linear
Fast response speed
Has good repeatability
The components work stably and reliably
No catalyst poisoning was present
Can be anaerobic, hypoxia detection
Specifications:
| 10% butane | >8 |
| 10%CO | >5 |
| Linear degree (%) | 0~5 |
| Response time (90%) | less than 10 seconds |
