Product Details:
|
| Product Package: | Plastic Package (ME3) | Detection Range: | 0-10ppm |
|---|---|---|---|
| Maximum Measurement Limit: | 100ppm | Life Expectancy: | 2 Years |
| Sensitivity: | 0.6±0.15uA/ppm | Resolution: | 0.1ppm |
| Highlight: | Industrial Environmental Protection Gas Sensor,CL2 Detection Gas Sensor |
||
Product Description:

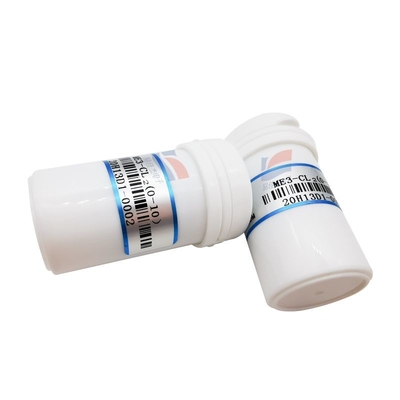

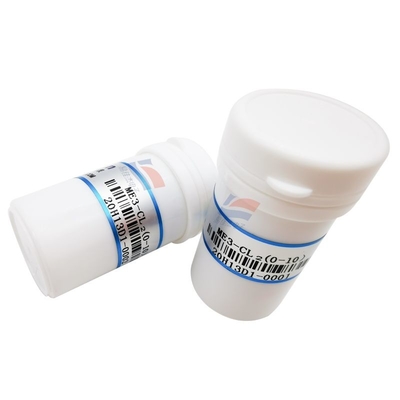

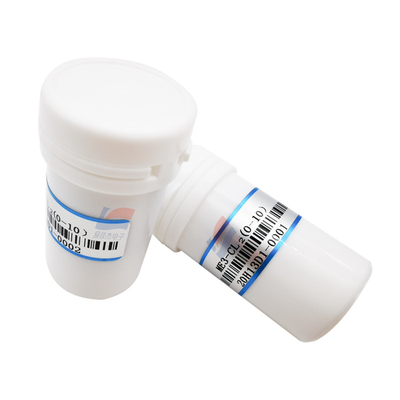

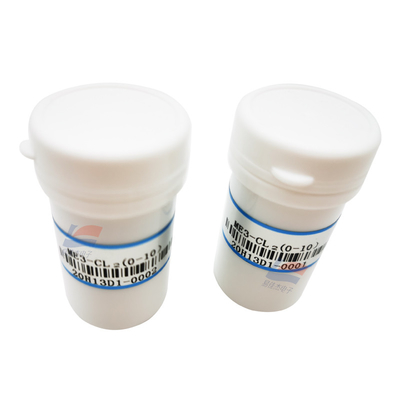

ME3-CL2 Electrochemical Gas Sensor For CL2 Detection In Industrial Environmental Protection
Features:
ME3-CL2 electrochemical gas sensor is based on the principle of electrochemistry, the measured gas is used to undergo corresponding REDOX reaction on the working electrode and the opposite electrode of the sensor and release charge, and the current is formed through the external circuit, and the current is proportional to the concentration of the gas, so as to realize the quantitative measurement of the target gas.
Product advantage
Low power consumption
High precision
High sensitivity
Wide linear range
Strong anti-interference ability
Excellent repeatability and stability
Main application
It is widely suitable for CL2 detection in industry and environmental protection.
Specifications:
| Response time (T90) | ≤60S |
| Load resistance (recommended) | 10Ω |
| Repeatability | < 2% output value |
| Zero drift | ﹣20℃～+50℃ |
