Product Details:
|
| Measuring Range: | 0-100ppm | Maximum Measurement Limit: | 500ppm |
|---|---|---|---|
| Sensitivity: | (0.8±0.15) UA/ppm | Resolution: | 0.1ppm |
| Response Time (T90): | < 30s | ||
| Highlight: | Industry Electrochemical Hydrogen Sulfide Sensor,Industry Hydrogen Sulfide Sensor |
||
Product Description:

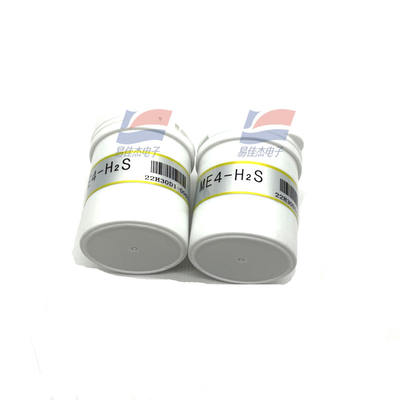

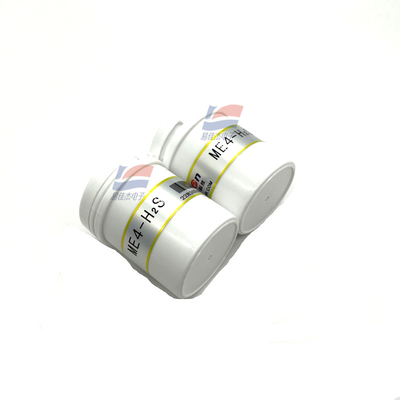

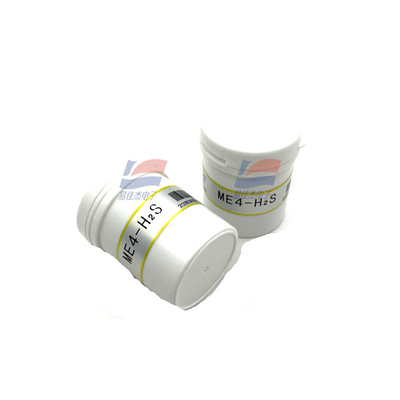

ME4-H2S Electrochemical Hydrogen Sulfide Sensor Is Used For Hydrogen Sulfide Detection In Industry And Environmental Protection
Features:
ME4-H2S type sensor is a constant potential electrolysis type H2S sensor. H2S and O2 undergo corresponding REDOX reactions at the working electrode and the opposite electrode and release charge to form current. The current is proportional to the concentration of H2S, and the concentration of H2S can be determined by testing the current.
Item parameter
Detection gas Hydrogen sulfide (H2S)
Measuring range 0-100ppm
z Maximum measurement limit 500ppm
Sensitivity (0.8±0.15) uA/ppm
Resolution 0.1ppm
Response time (T90) < 30s
Bias voltage 0mV
Load resistance (recommended) 10Ω
Repeatability < 2% output value
Stability (/ month) < 2%
The output linearity is linear
Zero drift (-20℃-40℃) ≤0.2ppm
Temperature range -20℃~50℃
Humidity range 15%-90%RH
Pressure range standard atmospheric pressure ±10%
Detection life 2 years (in the air)
Specifications:
| Response time (T90) | ≤30S |
| Load resistance (recommended) | 10Ω |
| Repeatability | < 2% output value |
| Zero drift | (-20℃ ~ +40℃) 0.2ppm |
