Product Details:
|
| Measuring Range: | 0-20ppm | Maximum Measurement Limit: | 150ppm |
|---|---|---|---|
| Sensitivity: | (1.2±0.3) UA/ppm | Resolution: | 0.1ppm |
| Response Time (T90): | < 30s | ||
| Highlight: | Environmental Protection Nitrogen Dioxide Sensor,Electrochemical Nitrogen Dioxide Sensor,Industrial Mines Nitrogen Dioxide Sensor |
||
Product Description:

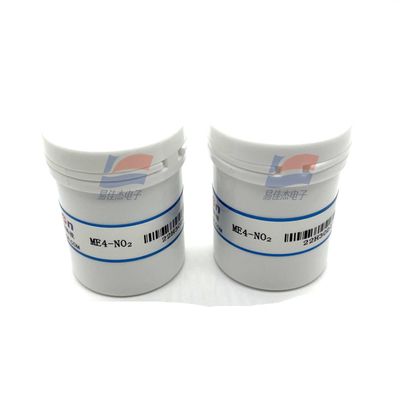

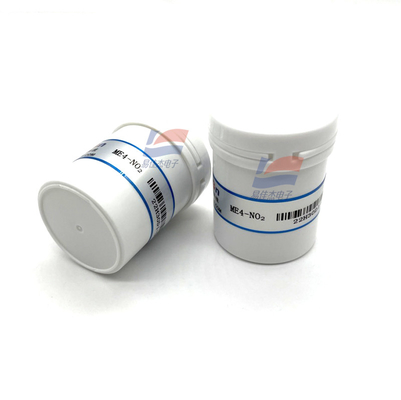

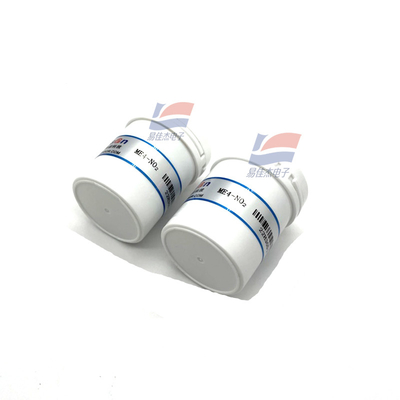

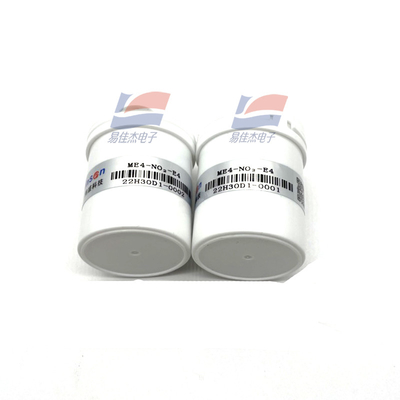

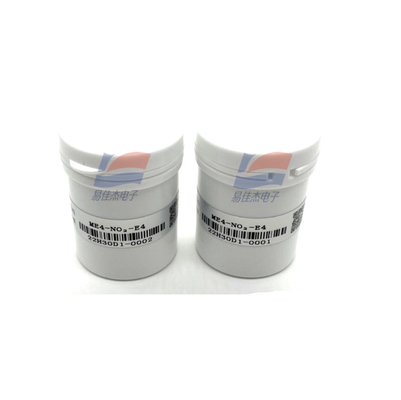

ME4-NO2 Electrochemical Nitrogen Dioxide Sensor Is Used For Nitrogen Dioxide Detection In Industrial Mines And Environmental Protection
Features:
ME4-NO2 sensor is a constant potential electrolytic NO2 sensor. NO2 and O2 undergo corresponding REDOX reaction on the working electrode and the opposite electrode and release charge to form current. The current generated is proportional to the concentration of NO2, and the concentration of NO2 can be determined by testing the current size.
Item parameter
Detection gas Nitrogen dioxide (NO2)
Measuring range 0-20ppm
z Maximum measurement limit 150ppm
Sensitivity (1.2±0.3) uA/ppm
Resolution 0.1ppm
Response time (T90) < 30s
Load resistance (recommended) 10Ω
Bias voltage 0mV
Repeatability < 2% output value
Stability (/ month) < 2%
The output linearity is linear
Zero drift (-20℃-40℃) 0.2ppm
Temperature range -20℃~50℃
Humidity range 15%-90%RH
Pressure range standard atmospheric pressure ±10%
Detection life 2 years (in the air)
Specifications:
| Response time (T90) | ≤30S |
| Load resistance (recommended) | 10Ω |
| Repeatability | < 2% output value |
| Zero drift | (-20℃ ~ +40℃) 0.2ppm |
