Product Details:
|
| Measuring Range: | 0-20ppm | Maximum Measurement Limit: | 50ppm |
|---|---|---|---|
| Sensitivity: | 0.205 ~ -0.548 UA/ppm | Resolution: | < 10ppb |
| Response Time (T90): | ≤60s | ||
| Highlight: | Outdoor Electrochemical NO2 Gas Sensor,Outdoor NO2 Gas Sensor |
||
Product Description:

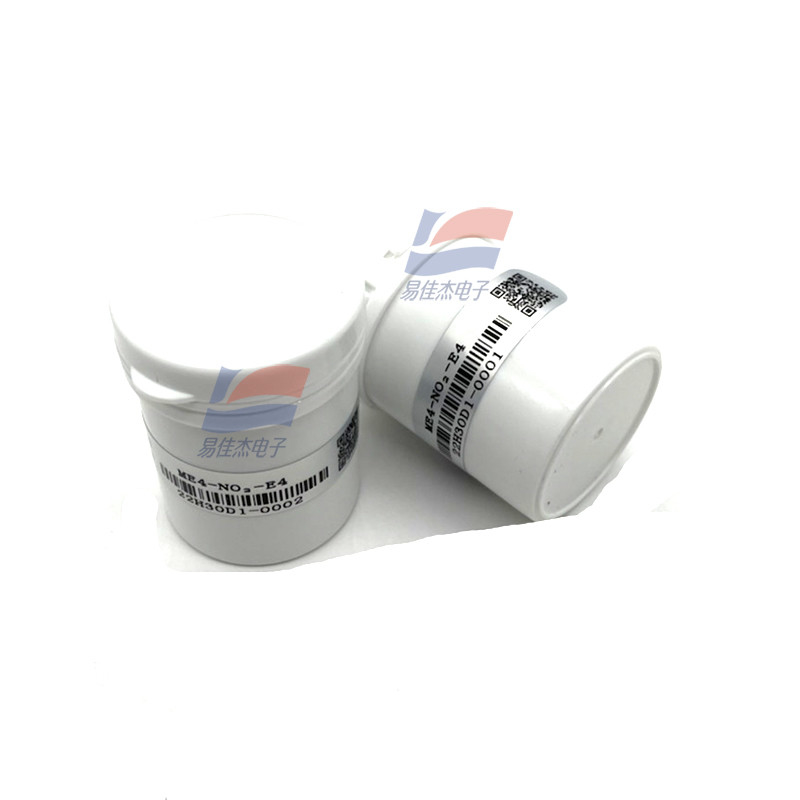

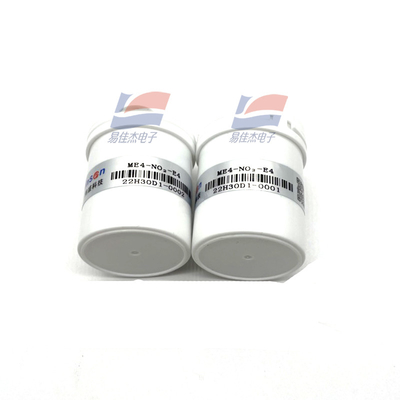

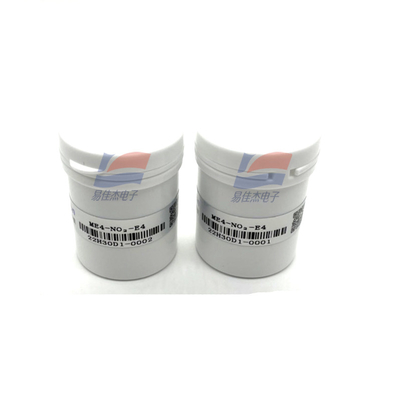

ME4-NO2-E4 Outdoor Electrochemical NO2 Gas Sensor
Features:
ME4-NO2-E4 sensor is a constant potential electrolytic NO2 sensor. NO2 and O2 undergo corresponding REDOX reaction on the working electrode and the opposite electrode and release charge to form current. The current generated is proportional to the concentration of NO2, and the concentration of NO2 can be determined by testing the current size. The sensor's fourth electrode auxiliary electrode is used to compensate the zero current, so that it has a strong signal level, low zero current characteristics.
Item parameter
Detection gas Nitrogen dioxide (NO2)
Measuring range 0-20ppm
z Maximum measurement limit 50ppm
Sensitivity -0.205 ~ -0.548 uA/ppm
Resolution < 10ppb
Response time (T90) ≤60s
Load resistance (recommended) 33-100Ω
Stability (/ month) -20% ~ -40%
The output linearity is linear
Zero drift (-20℃-40℃) 0-20ppb
Temperature range -30℃-40℃
Humidity range 15 -- % -- 85%RH
Pressure range 80-120kPa
Detection life 2 years (in the air)
Specifications:
| Response time (T90) | ≤60S |
| Load resistance (recommended) | 10Ω |
| Repeatability | -0.205 ~ -0.548 uA/ppm |
| Zero drift | (-20℃ ~ +40℃) 20ppm |
