Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 20 Ppm |
|---|---|---|---|
| Maximum Overload: | 40 Ppm | Output Signal: | 400 ± 150 NA/ppm |
| Resolution (Electronics Dependent): | < 0.2 Ppm | T80 Response Time: | < 40 S |
| Highlight: | Portable Gas Detectors HCl Gas Sensor,3-Electrode Electrochemical Gas Sensor,Highly Sensitive HCl Gas Sensor |
||

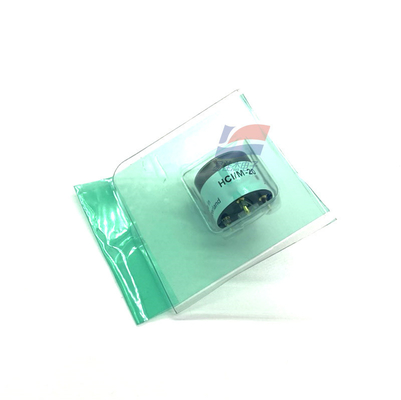

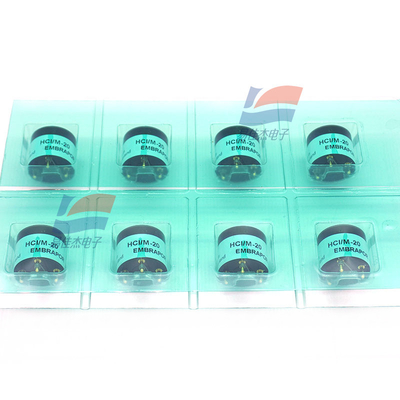

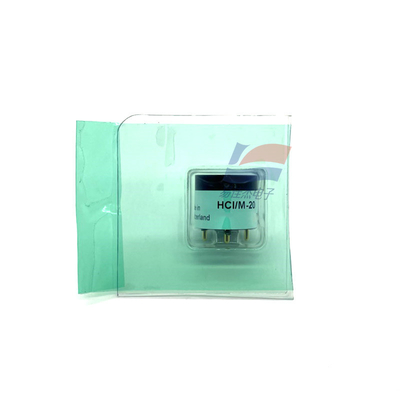

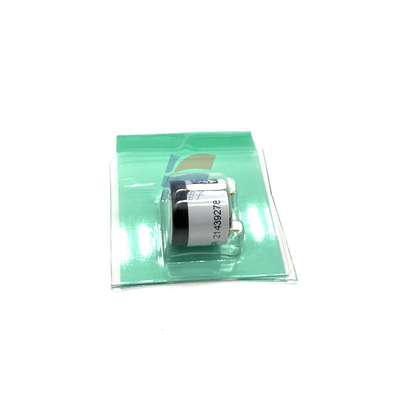

Hydrogen Chloride Gas Sensor HCl/M-20
HCl Gas Sensor in Miniature Housing
Key Features:
• Highly sensitive HCl measurement
Applications:
• Discontinuous Measurement
• Safety and Environmental Control
• For Portable Gas Detectors
| Typical Baseline Range (pure air, 20°C) | -0.5 ppm to 0.5 ppm |
| Maximum Zero Shift (+20°C to +40°C) | see Graph |
| Repeatability | < 2 % of signal |
| Output Linearity | Linear |
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -20 °C to 50 °C |
