Product Details:
|
| Measuring Range: | 0-20ppm | Maximum Measurement Limit: | 200ppm |
|---|---|---|---|
| Sensitivity: | (0.8±0.2) UA/ppm | Resolution: | 0.1ppm |
| Response Time (T90): | ≤30s | ||
| Highlight: | Industry Electrochemical Sulfur Dioxide Gas Sensor,ME4-SO2 Sulfur Dioxide Gas Sensor |
||
Product Description:

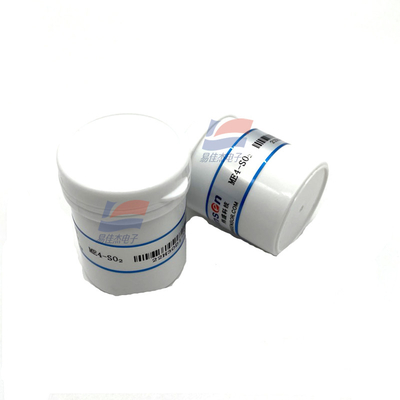

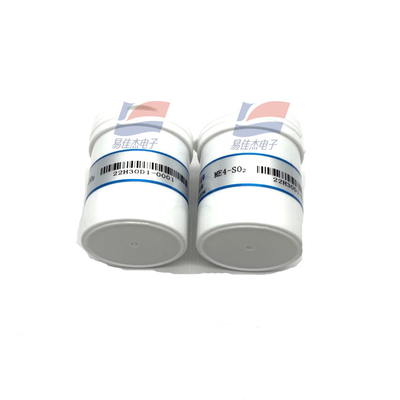

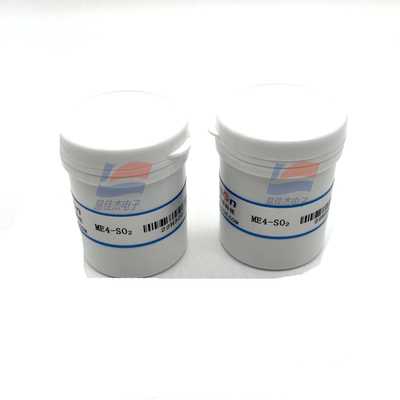

ME4-SO2 Electrochemical Sulfur Dioxide Gas Sensor For Sulfur Dioxide Detection In Industry And Environmental Protection
Features:
ME4-SO2 type sensor is a constant potential electrolysis type SO2 sensor. SO2 and O2 undergo corresponding REDOX reaction at the working electrode and the opposite electrode and release charge to form current, the current is proportional to the concentration of SO2, and the concentration of SO2 can be determined by testing the current size.
Item parameter
Detection gas Sulfur dioxide (SO2)
Measuring range 0-20ppm
z Maximum measurement limit 200ppm
Sensitivity (0.8±0.2) uA/ppm
Resolution 0.1ppm
Response time (T90) ≤30s
Bias voltage 0mV
Load resistance (recommended) 10Ω
Repeatability < 2% output value
Stability (/ month) < 2%
The output linearity is linear
Zero drift (-20℃-40℃) ≤0.2ppm
Temperature range -20℃-50℃
Humidity range 15%-90%RH
Pressure range standard atmospheric pressure ±10%
Detection life 2 years (in the air)
Specifications:
| Response time (T90) | ≤30S |
| Load resistance (recommended) | 10Ω |
| Repeatability | < 2% output value |
| Zero drift | (-20℃ ~ +40℃) 0.2ppm |
