Product Details:
|
| Measuring Range: | 0 – 30 Ppm1) | Sensitivity Range: | 60 NA/ Ppm ± 15 NA/ Ppm |
|---|---|---|---|
| Zero Current At 20°C: | < ± 15 NA | Resolution At 20°C: | < 0.2 Ppm |
| Bias Potential: | 0 MV | Linearity: | < 5% Full Scale |
| Highlight: | HCN Electrochemical Gas Sensor |
||
Hydrogen Cyanide

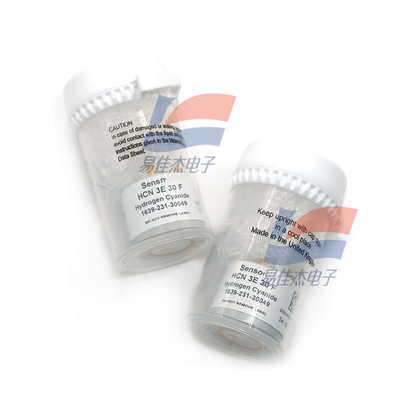

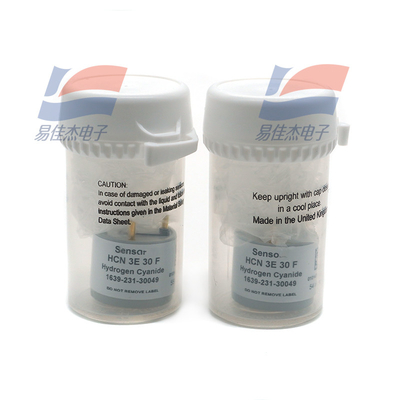

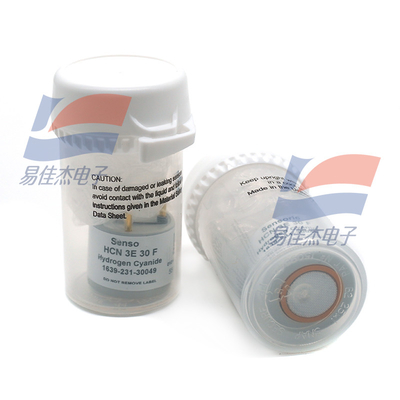

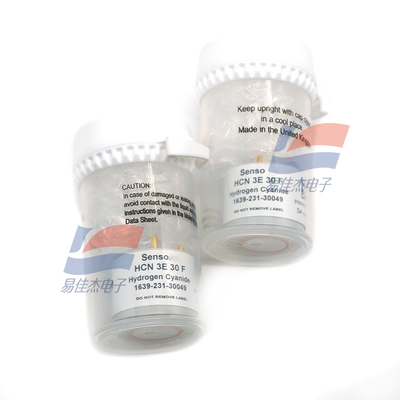

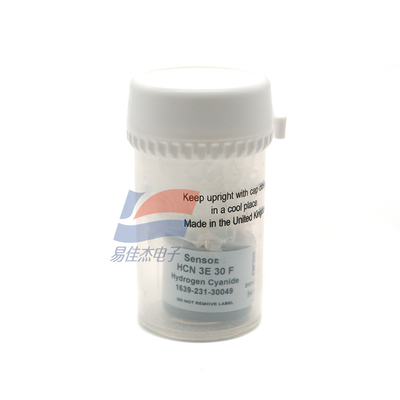

Sensoric HCN 3E 30 F
FEATURES:
Amperometric 3 electrode sensor cell
Very stable zero reading
Very selective
Highly sensitive
Fixed organic gel electrolyte
TYPICAL APPLICATIONS:
TLV-monitoring, leakage detection
portable & fixed point applications
Gold mining
PART NUMBER INFORMATION:
MINI 1639-231-30009
SENSORIC CLASSIC 1639-231-30069
CTL 4 series adaptation 1639-231-30049
CTL 7 series adaptation 1639-231-30079
| Long Term Sensitivity Drift | < 5% per month |
| Operation Conditions Temperature Range | -40°C to +40°C |
| Operation Conditions Humidity Range | 15–95% r.H., non–condensing |
| Effect of Humidity | no effects |
| Sensor Life Expectancy | > 18 months |
