Product Details:
|
| Heating Voltage: | VH 6.0V± 0.1V | Heating Resistance: | RH 35.0Ω±3.0Ω |
|---|---|---|---|
| Heating Current IH: | 140mA±20mA | Heating Power Consumption PH: | 850mW±120mW |
| Highlight: | YJJ MG811 CO2 Sensor |
||
Product Description:

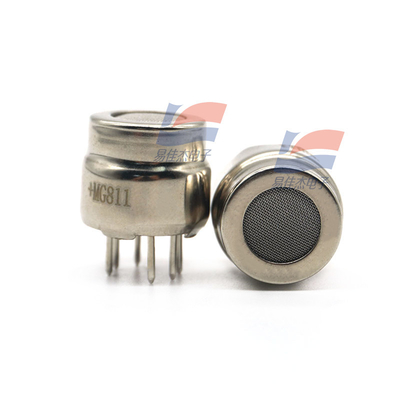

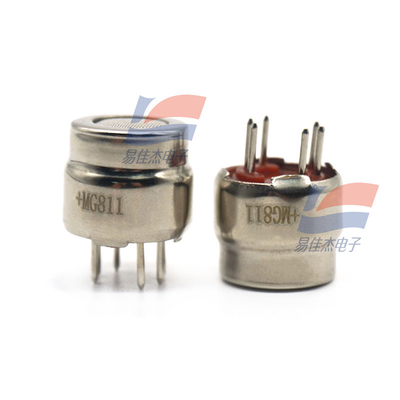

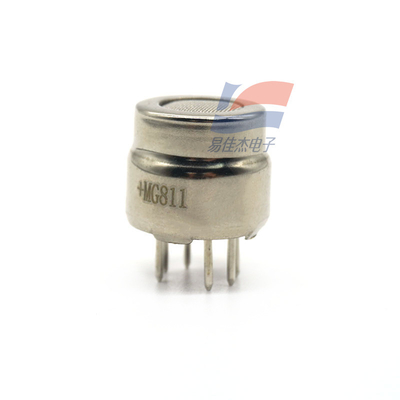

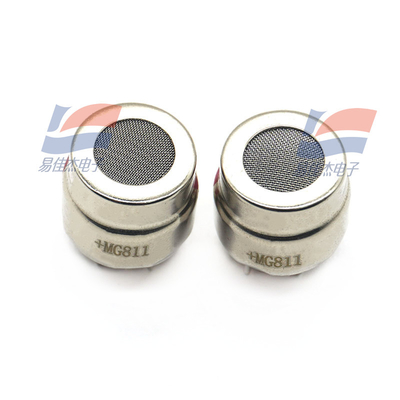

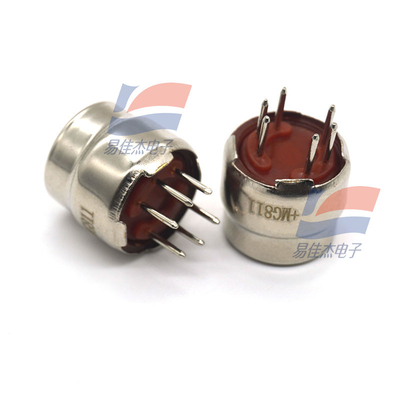

MG811 Electrolyte CO2 Sensor Is Used To Monitor CO2 Concentration In Air Quality Control Systems
Features:
MG811 electrolyte CO2 sensor is a semiconductor oxide chemical sensor that uses the principle of a solid electrolyte battery to detect CO2. When the sensor is kept at a certain operating temperature and placed in a CO2 atmosphere, electrode reaction occurs in the positive and negative electrodes of the battery, electromotive force is generated between the sensor sensitive electrode and the reference electrode, and the output signal voltage is inversely proportional to the logarithmic linear relationship of CO2 concentration, and the change of CO2 concentration can be detected by testing the change of signal voltage.
Item parameter
Product model MG-811
Standard package plastic seal iron jacket
Detection gas carbon dioxide
Detection range 0~10000ppm CO2
Heating voltage VH 6.0V± 0.1V
Heating resistance RH 35.0Ω±3.0Ω
Heating current IH 140mA±20mA
Heating power consumption PH 850mW±120mW
Operating temperature Tao -20℃ ~ 50℃
Storage temperature 20℃ ~ 70℃
Zero EMF 300mV-500mV (in 400ppm CO2)
Output signal DEMF ≥25mV
EMF (400ppm CO2) -EMF (1000ppmCO2)
Specifications:
| Operating temperature | -20℃ ~ 50℃ |
| Heating voltage | VH 6.0V± 0.1V |
| Repeatability | < 2% output value |
| Output signal DEMF | ≥25mV |
