Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 100 Ppm |
|---|---|---|---|
| Maximum Overload: | 200 Ppm | Output Signal: | 600 ± 150 NA/ppm |
| Resolution (Electronics Dependent): | < 0.05 Ppm | T90 Response Time: | < 20 S |
| Typical Baseline Range (pure Air, 20°C): | -0.1 Ppm To 0.3 Ppm | Maximum Zero Shift (+20°C To +40°C): | 1 Ppm |
| Repeatability: | < 2 % Of Signal | ||
| Highlight: | Hydrogen Cyanide Gas Sensor |
||

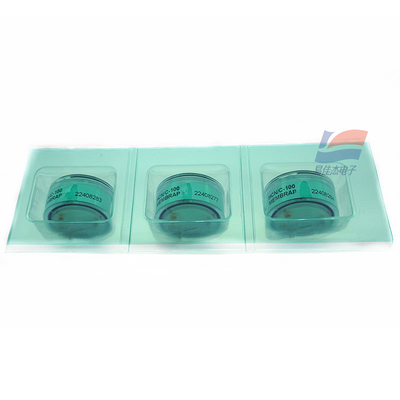

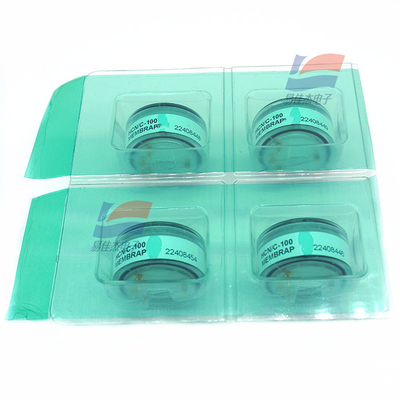

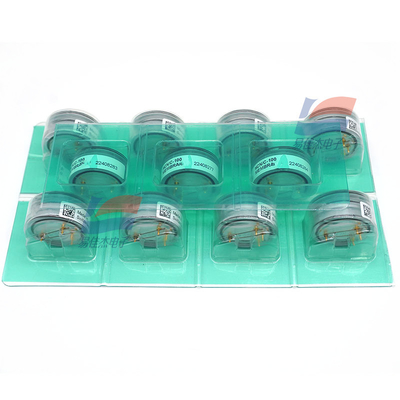

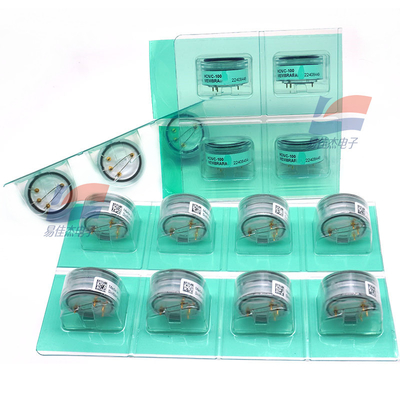

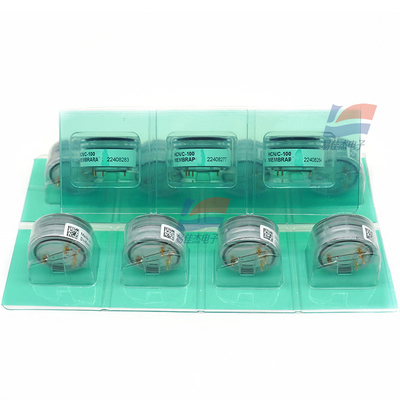

Hydrogen Cyanide Gas Sensor HCN/C-100
HCN Gas Sensor in Compact Housing
Applications:
• Discontinuous Measurement
• Safety and Environmental Control
Cross Sensitivity Data :
The table below does not claim to be complete. Interfering gases should not be used for calibration. Please contact Membrapor AG for further support regarding cross sensitivities.
| Rec. Load Resistor | 10 - 33 Ω |
| Bias (V_Sens-V_Ref) | not recommended |
| Conformity to RoHS directive | RoHS Compliance |
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -20 °C to 50 °C |
| Pressure Range | Atmospheric ± 10% |
| Pressure Coefficient | N.D. |
| Humidity Effect | None |
