Product Details:
|
| Heating Voltage: | VH 5.0V± 0.1V | Heating Resistance RH: | 60.0Ω±5Ω |
|---|---|---|---|
| Heating Current IH: | 85mA±10mA | Heating Power Consumption PH: | 420mW±50mW |
| Highlight: | Low Power CO2 Semiconductor Gas Sensor,YJJ MG812 CO2 Semiconductor Gas Sensor |
||
Product Description:

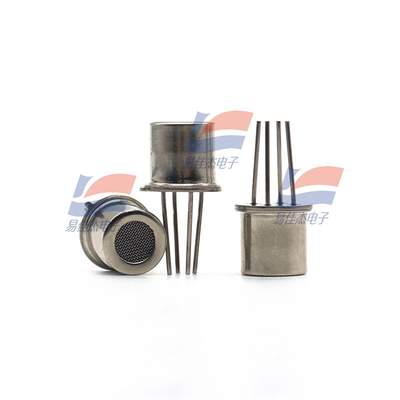

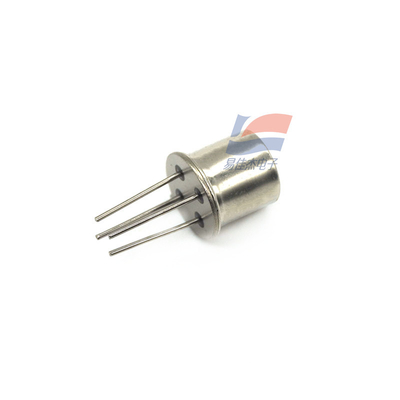

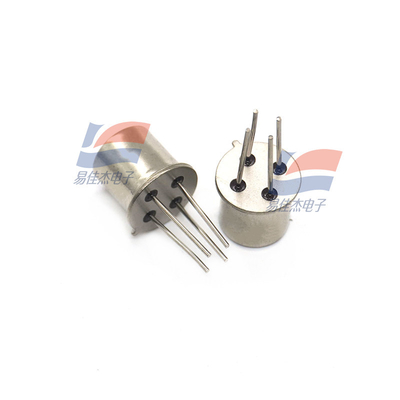

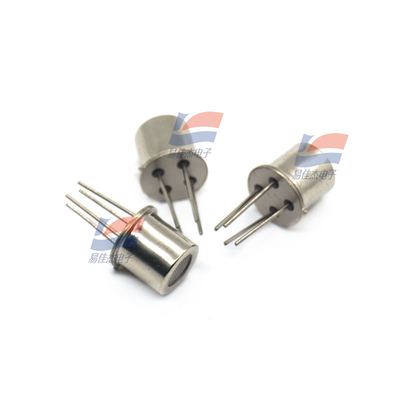

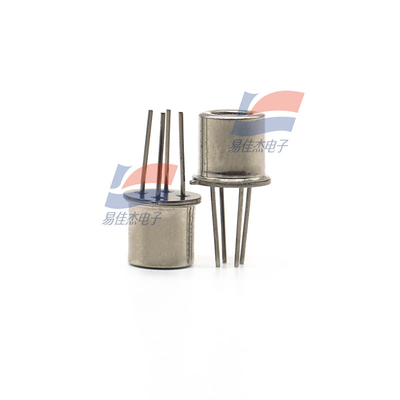

MG812 Low Power CO2 Semiconductor Gas Sensor For CO2 Concentration Detection In Air Quality Control Systems
Features:
MG-812 is a semiconductor oxide chemical sensor that uses the principle of a solid electrolyte battery to detect CO2. When the sensor is kept at a certain operating temperature and placed in a CO2 atmosphere, electrode reaction occurs in the positive and negative electrodes of the battery, electromotive force is generated between the sensor sensitive electrode and the reference electrode, and the output signal voltage is inversely proportional to the logarithmic linear relationship of CO2 concentration, and the change of CO2 concentration can be detected by testing the change of signal voltage.
Product model MG-812
Standard package metal housing
Detection gas carbon dioxide
Detection range 0~10000ppmCO2
Heating voltage VH 5.0V± 0.1V
Heating resistance RH 60.0Ω±5Ω
Heating current IH 85mA±10mA
Heating power consumption PH 420mW±50mW
Operating temperature Tao -20℃ ~ 50℃
Storage temperature -20℃ ~ 70℃
Zero EMF 200mV-400mV (in 400ppmCO2)
Output signal DEMF ≥20mV
EMF (400ppmCO2) -EMF (1000ppmCO2)
Specifications:
| Operating temperature | -20℃ ~ 50℃ |
| Heating voltage | VH 5.0V± 0.1V |
| Output signal DEMF | ≥20mV |
| Output signal DEMF | 200mV-400mV (in 400ppmCO2) |
