Product Details:
|
| Measuring Range: | 0–10 Ppm | Sensitivity Range: | 300 NA/ppm ± 100 NA/ppm |
|---|---|---|---|
| Zero Current At 20°C: | <± 30 NA | Resolution At 20°C: | <0.1 Ppm |
| Bias Potential: | 0 MV | Linearity: | Linearity |
| Highlight: | Highly Sensitive Electrochemical Gas Sensor,Fixed Point Electrochemical Gas Sensor,Portable Electrochemical Gas Sensor |
||
Hydrogen Fluoride

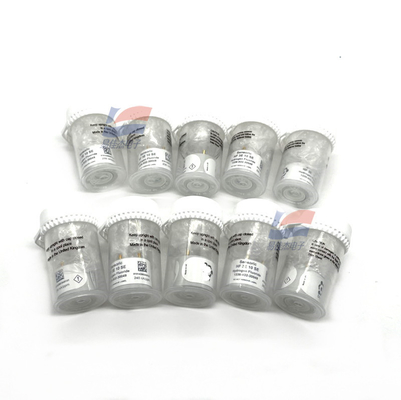

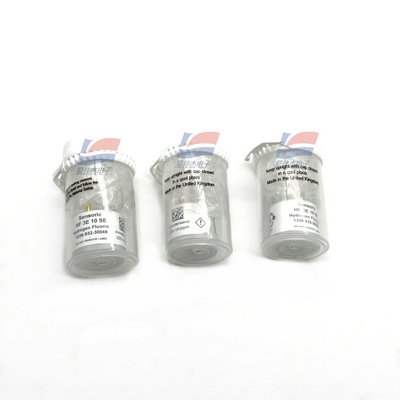

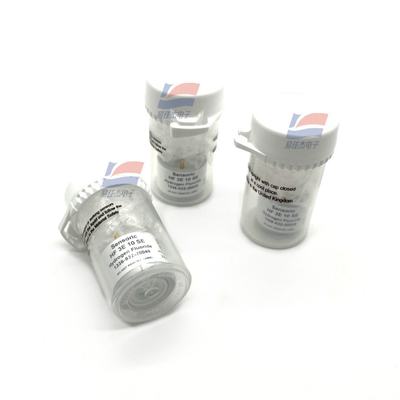

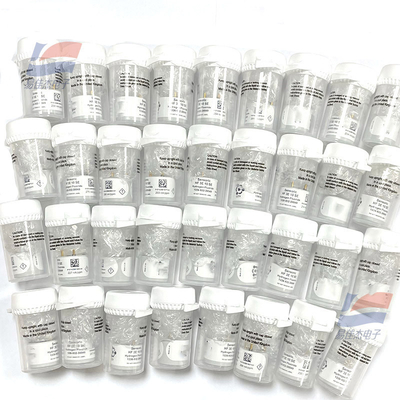

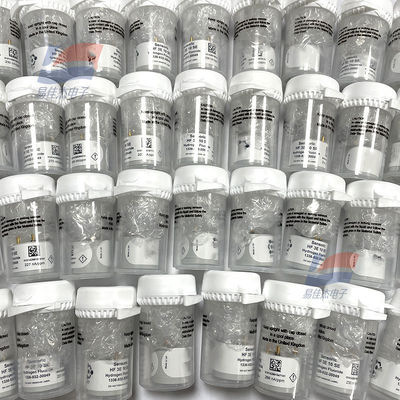

SensoriC HF 3E 10 SE
FEATURES:
Amperometric 3 electrode sensor cell
Very stable zero reading
Highly sensitive
Monitors for acid gases
TYPICAL APPLICATIONS:
TLV-monitoring, leakage detection
Portable & fixed point applications
PART NUMBER INFORMATION:
MINI 1336-932-30009
SENSORIC CLASSIC 1336-932-30069
CTL4 series adaptation 1336-932-30049
CTL 7 series adaptation 1336-932-30079
OUTPUT vs. TEMPERATURE:
Due to the nature of the gas the temperature dependence of the sensor as a function of the
environmental temperature conditions is strongly related to the experimental conditions such
as relative humidity.
SensoriC is currently revising this set of data via cross calibration with HCl.
Based on the current experience with this sensor the temperature dependence
a) on the zero reading is < 0.5 ppm
b) on the sensitivity is < 20% of the sensitivity at 20°C
within the specified temperature range.
| Operation Conditions | -20°C to +40°C |
| Humidity Range | 15–90% r.H., non–condensing |
| Effect of Humidity | abrupt change of r.H. might cause a zero reading transient |
| Sensor Life Expectancy | > 18 months |
| Warranty | 12 months |
