Product Details:
|
| Operating Voltage: | 3.6 ~ 5 V DC | Average Current: | < 85mA |
|---|---|---|---|
| Measurement Range: | 0 ~ 10%Vol | Interface Level: | 3.0V |
| Highlight: | HVAC Methane Gas Sensor,Refrigeration Methane Gas Sensor,HVAC Refrigeration Methane Gas Sensor |
||
Product Description:

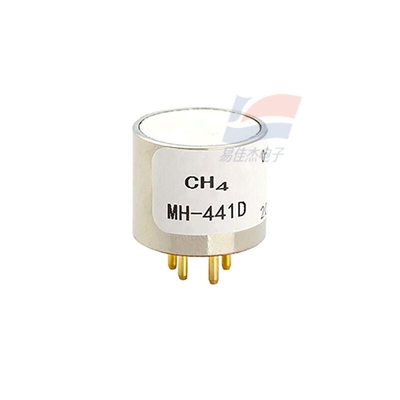

MH-441D Non-dispersive Infrared (NDIR) Principle Methane Gas Sensor Is Used For HVAC Refrigeration And Indoor Air Quality Monitoring
Features:
MH-441D methane gas sensor is a general-purpose intelligent infrared gas sensor (hereinafter referred to as the sensor), using non-dispersive infrared (NDIR) principle to detect methane gas in the air, with good selectivity and no oxygen dependence; The sensor is a compact and high-performance sensor which combines the mature infrared absorption gas detection technology with micro-machining and excellent circuit design. Easy to use, can be directly used to replace catalytic combustion elements, widely used in methane and explosive gas in various occasions.
Product model MH-441D
Detection gas methane
Operating voltage 3.6 ~ 5 V DC(need to be powered by safety grid)
Average current < 85mA (peak current < 100mA) @5VDC
Measurement range 0 ~ 10%Vol (see Table 2)
Interface level 3.0V
Output signal UART-TTL(3.3V compatible with 5V)
0.4 to 2 V
Preheating time: 3 min
Response time T90 < 30 s
Operating temperature -20 ~ 60 ℃
Working humidity 0 ~ 95%RH (non-condensing)
Dimensions Φ20×22.4mm
Weight 35 g
Life span > 5 years
Protection class IP54
Power end, communication end
Intrinsic safety parameter Ui=7.5VDC, Ii=265mA,
Pi=0.5W, Ci= 10μF, Li=0Mh
Specifications:
| Operating temperature | -20℃ ~ 60℃ |
| Preheating time | 3 min |
| Response time | < 30 s |
| Working humidity | 0 ~ 95%RH (non-condensing) |
