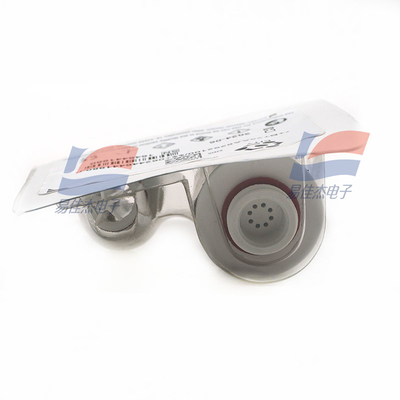

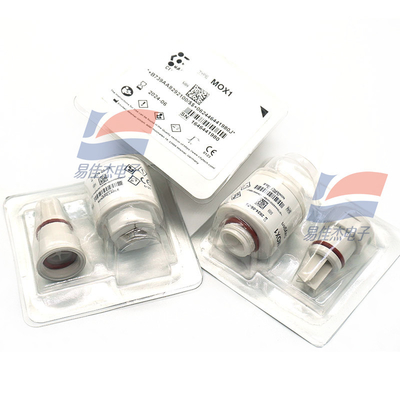

MOX1 MOX-1 AA829-210 Oxygen Gas Sensor for Ventilator Anesthesia Machine and Oxygen Concentration Monitorin

      MOX1 MOX-1 AA829-210 Oxygen Gas Sensor for Ventilator Anesthesia Machine and Oxygen Concentration Monitorin

Features:

• Wide measurement range: It can measure oxygen partial pressure from 0 mbar to 1500 mbar, corresponding to an oxygen concentration range of 0% - 100% vol. O2.
• Fast response: The response time (t90) is less than 15 seconds (from air to 100% O2).
• Good linearity: It has a linear output from 0% to 100% O2, which meets the requirements of ISO 80601 - 2 - 55.
• Stable baseline: The baseline offset is less than 200 μV.
• Temperature compensation: The temperature compensation is less than 2% O2 equivalent in the range of 0 °C to 40 °C.
• Wide operating temperature range: It can work in the temperature range of -20 °C to +50 °C.
• Wide operating pressure range: The operating pressure range is 0.5 bar to 2.0 bar.
• High - humidity resistance: It can operate in an environment with a humidity range of 0% to 99% rh (non - condensing).
• Low long - term output drift: In 100% O2, the long - term output drift is less than 5% signal loss per year.

Uses:

The MOX1 oxygen sensor is designed to monitor the partial pressure of oxygen in anesthesia (not including xenon), critical care, neonatal incubators, and general oxygen monitors.
