Product Details:
|
| Loop Voltage Vc: | ≤24V DC | Heating Voltage VH: | 5.0V±0.1V ACorDC |
|---|---|---|---|
| Load Resistance RL: | Adjustable | Heating Resistance RH: | 85Ω±15Ω (room Temperature) |
| Heating Power Consumption PH: | ≤350mW | ||
| Highlight: | Planar Semiconductor Flammable Gas Sensor,YJJ Flammable Gas Methane Sensor |
||
Product Description:

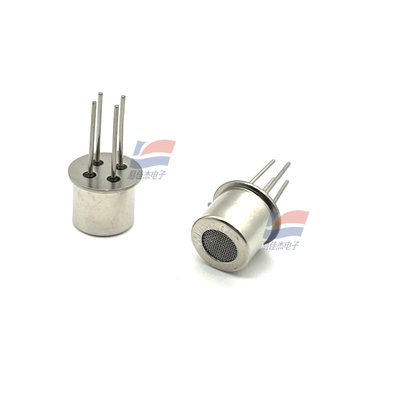

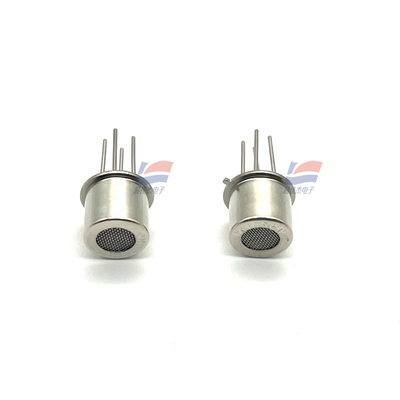

MP-4 Planar Semiconductor Flammable Gas Methane Sensor Is Used For Gas leak Detectors
Features:
This product has good sensitivity to methane in a wide concentration range, has the advantages of strong anti-interference ability, low power consumption, fast response recovery, good stability, long life, low cost, simple drive circuit and so on
Product details
MP-4 combustible gas sensor adopts a multi-layer thick film manufacturing process, and the heater and metal oxide semiconductor gas sensitive layer are respectively made on both sides of the miniature Al2O3 ceramic substrate, and are packaged in the metal shell. The conductivity of the sensor changes when the detected gas is present in the ambient air. The higher the concentration of this gas, the higher the conductivity of the sensor. This change in conductivity can be converted into an output signal corresponding to the gas concentration using a simple circuit.
Product advantage
This product has good sensitivity to methane in a wide concentration range, and has the advantages of strong anti-interference ability, low power consumption, fast response recovery, good stability, long life, low cost, simple drive circuit, etc.
Main application
1. Flammable gas leakage monitoring devices, fire/safety detection systems for home, factory and commercial use.
2. Flammable gas leak alarm, gas leak detector.
Specifications:
| Product Type | Planar semiconductor gas sensor |
| Standard package | metal |
| Detection gas | methane, natural gas, methane |
| Detection concentration | 300-10000ppm(methane, natural gas) |
