Product Details:
|
| Loop Voltage Vc: | ≤24V DC | Heating Voltage VH: | 5.0V±0.1V AC Or DC |
|---|---|---|---|
| Load Resistance RL: | Adjustable | Heating Resistance RH: | 95±10Ω (room Temperature) |
| Highlight: | Semiconductor Ammonia Gas Sensor |
||
Product Description:

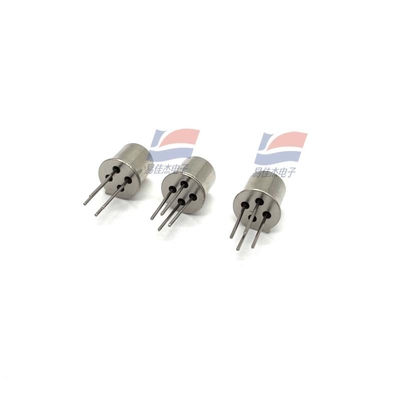

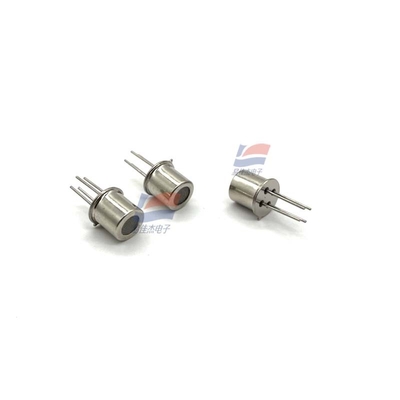

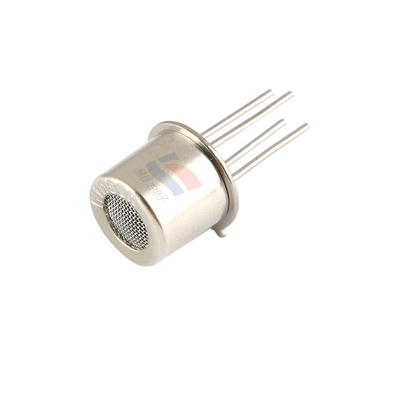

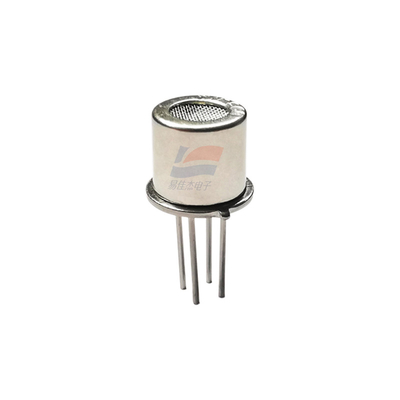

MP-702 Semiconductor Ammonia Gas Sensor Is Used For Refrigerator Gas Detection
Features:
MP-702 ammonia gas sensor adopts a multi-layer thick film manufacturing process, and the heater and metal oxide semiconductor gas sensitive layer are respectively made on both sides of the miniature Al2O3 ceramic substrate, and are packaged in the metal housing. When there is a detected gas in the ambient air, the conductivity of the sensor changes. The higher the concentration of the gas, the higher the conductivity of the sensor. This change in conductivity can be converted into an output signal corresponding to the gas concentration using a simple circuit.
Main application
Refrigerator gas detection, cold storage ammonia leakage detection and agricultural aquaculture risk control system detection
Specifications:
| Product Type | Planar semiconductor gas sensor |
| Standard package | Plastic seal |
| Detection gas | NH3 |
| Detection concentration | 0～100ppm(NH3) |
