Product Details:
|
| Loop Voltage Vc: | 5.0V±0.1V DC | Heating Voltage VH: | 5.0V±0.1V AC Or DC |
|---|---|---|---|
| Load Resistance RL: | Is Adjustable | Heating Resistance RH: | 30Ω±3Ω (room Temperature) |
| Highlight: | Adjustable Load Resistance Gas Sensor,Heating Resistance Gas Sensor,Home Gas Leak Alarm Gas Sensor |
||
Product Description:

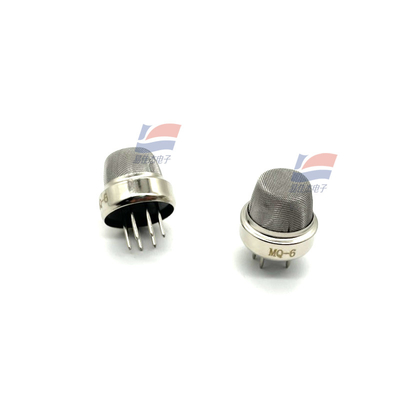

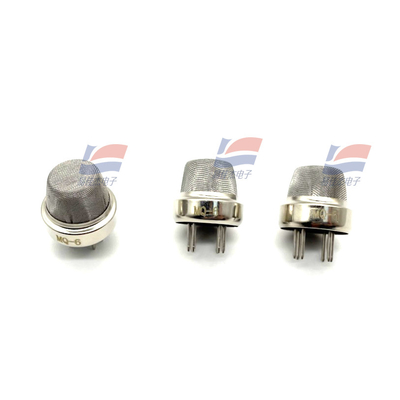

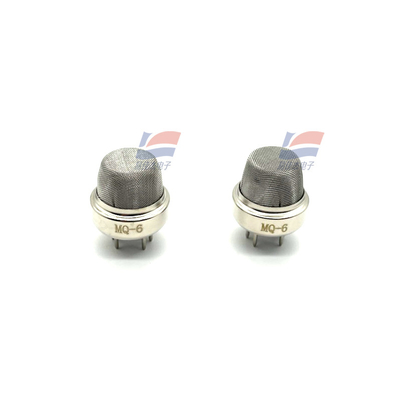

MQ-6 MQ-6B Combustible Gas Sensor For Home Gas leak Alarm
Features:
Gas-sensitive material used by the MQ-6 combustible gas sensor is tin dioxide (SnO2), which has a low conductivity in clean air. When there is a combustible gas in the environment of the gas sensor, the conductivity of the sensor increases with the increase of the combustible gas concentration in the air. A simple circuit can be used to convert the change in conductivity into an output signal corresponding to the concentration of that gas. MQ-6 combustible gas sensor has high sensitivity to propane, butane, liquefied petroleum gas, and natural gas. This gas sensor can detect a wide range of combustible gases and is a low-cost sensor suitable for a variety of applications.
Main application
Home gas leak alarm, industrial flammable gas alarm, portable gas detector
Specifications:
| Product Type | Planar semiconductor gas sensor |
| Standard package | Plastic seal |
| Detection gas | bakelite, metal cover |
| Detection concentration | liquefied gas, methane |
