Product Details:
|
| Loop Voltage Vc: | 5.0V±0.1V DC | Heating Voltage VH: | 5.0V±0.1V AC Or DC |
|---|---|---|---|
| Load Resistance RL: | Adjustable RH | Heating Power Consumption PH: | ≤950mW |
| Highlight: | MQ131 Ozone Sensor,Household Ozone Concentration Alarm,Household Ozone Sensor |
||
Product Description:

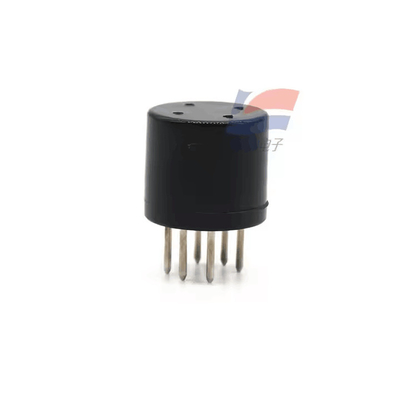

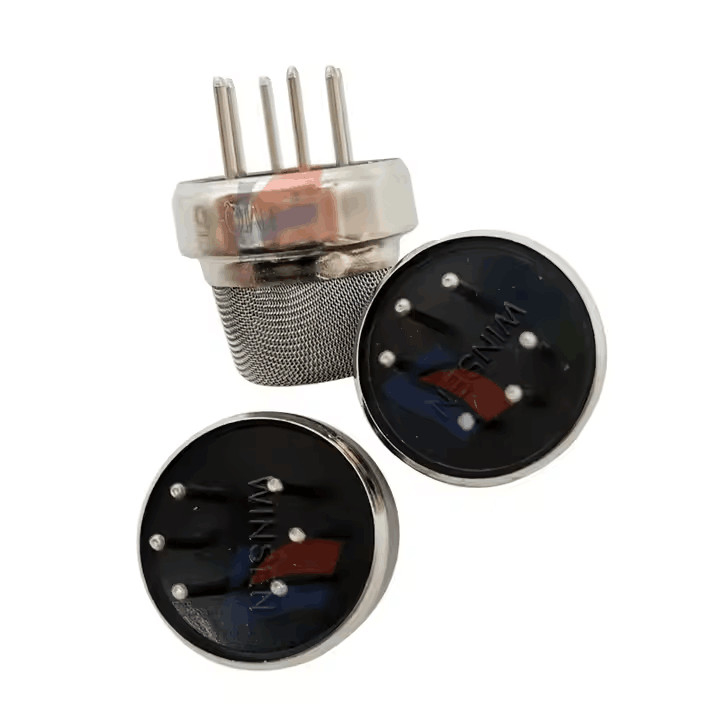

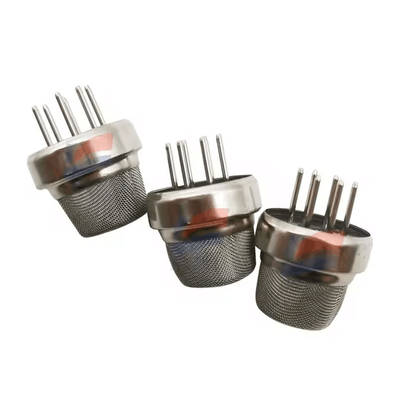

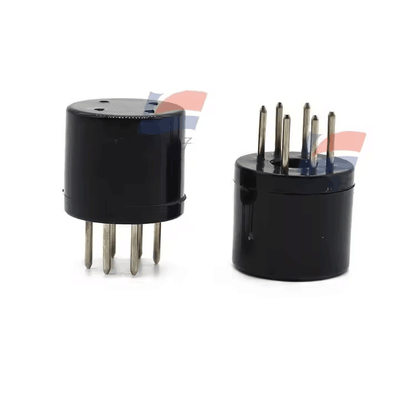

MQ131 Ozone Sensor Is Used For Household Ozone Concentration Alarm
Features:
Gas sensitive material used in the MQ131 ozone sensor is a semiconductor metal oxide with high conductivity in clean air. When there is ozone in the environment of the sensor, the conductivity of the sensor decreases with the increase of the ozone gas concentration in the air. A simple circuit can be used to convert the change in conductivity into an output signal corresponding to the concentration of the gas. The MQ131 ozone sensor has high sensitivity to ozone, strong oxidizing gases such as chlorine and nitrogen dioxide, and also has a certain sensitivity to organic interference gases in the direction opposite to ozone.
Main application
It is widely used in household ozone concentration alarm, industrial ozone concentration alarm and portable ozone concentration detector.
Specifications:
| Product Type | Planar semiconductor gas sensor |
| Standard package | Plastic seal |
| Detection gas | ozone |
| Detection concentration | 10 ~ 1000ppm ozone |
