Product Details:
|
| Loop Voltage Vc: | 5.0V±0.1V DC | Heating Voltage VH: | 5.0V±0.1V AC Or DC |
|---|---|---|---|
| Load Resistance RL Is: | Adjustable | Heating Resistance RH: | 30Ω±3Ω (room Temperature) |
| Heating Power Consumption PH: | ≤950mW | ||
| Highlight: | YJJ Ozone Sensor Module,YJJ Module Ozone Sensor Module |
||
Product Description:

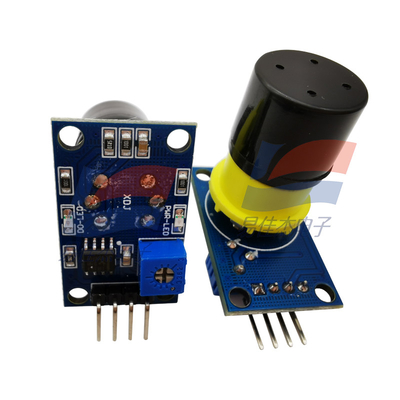

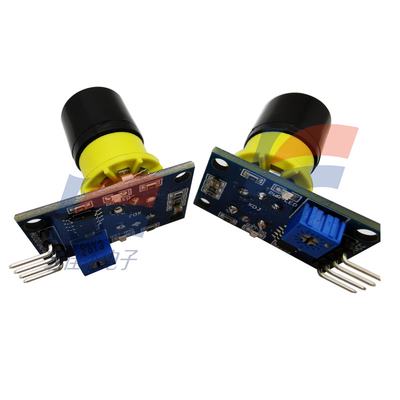

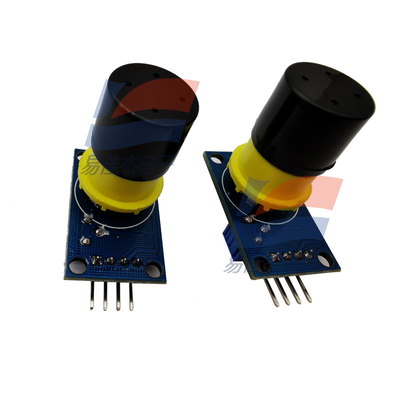

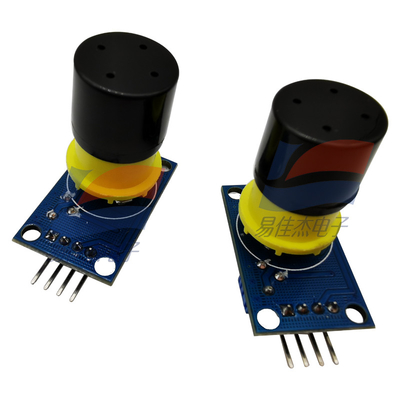

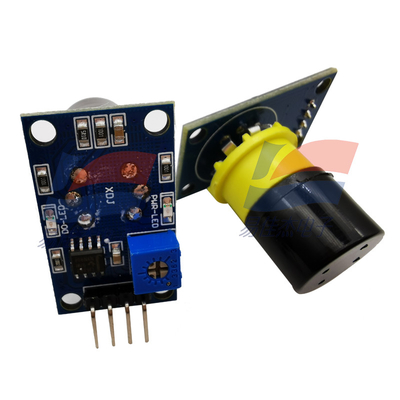

MQ-131 Module Ozone Gas Detection Ozone Sensor Module Air Quality Detection
Features:
Main chip: MQ131 gas sensor
Operating voltage: DC 5V
Features:
1, with signal output indicator light;
2, dual signal output (analog output and TTL level output);
3, TTL output effective signal is low level; (Output low normal signal light, can be connected to MCU IO port)
4, analog output increases with the increase of concentration, the higher the concentration, the higher the voltage;
5, high sensitivity to ozone gas, (detection concentration range of 10PPB-2PPM)
6, with a long service life and reliable stability;
7, fast response recovery characteristics;
Specifications:
| Product Type | Planar semiconductor gas sensor |
| Standard package | Plastic seal |
| Detection gas | ozone |
| Detection concentration | 10 ~ 1000ppm ozone |
