Product Details:
|
| Supply Voltage To Sensor: | A C 3.3V (50 － 60Hz) DC 3.3V | Temperature: | －40 ～ +80℃ |
|---|---|---|---|
| Humidity: | Less Than 99%RH (without Dew Condensation) | Supply Voltage To Sensor: | A C 2.6 ± 0.13V(50－60Hz) |
| Current(when 2.5V Is Supplied): | AC 160 ～ 180mA(50－60Hz) DC 160 ～ 180mA | Detected Gases: | General Combustible Gases |
| Highlight: | Excellent Repeatability Gas Sensor,Quick Response Gas Sensor,Good Stability Gas Sensor |
||

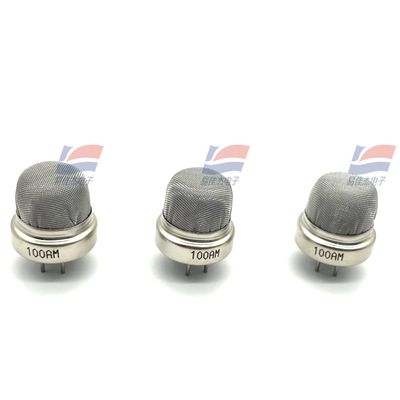

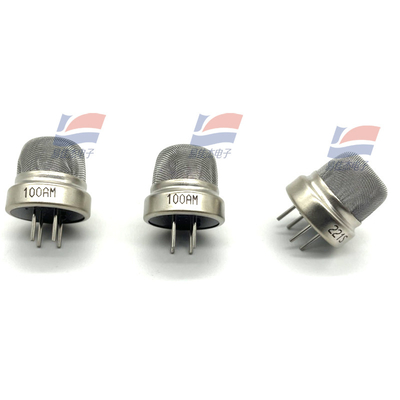

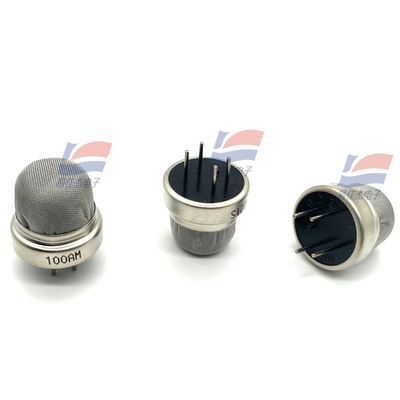

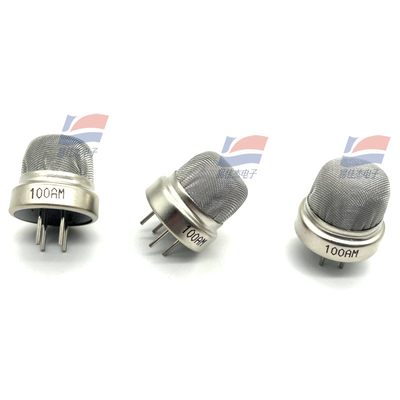

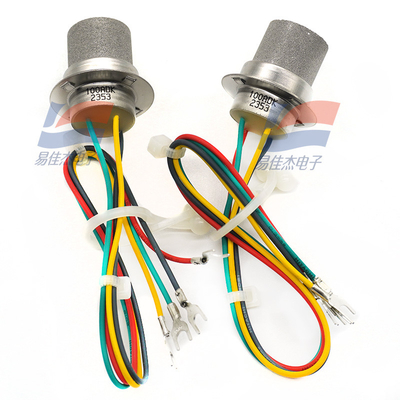

ＮＡＰ－100AM (CATALYTIC TYPE GAS SENSOR)
NAP-100AM is a catalytic type gas sensor employed for mainly commercial or semi-industrial applications. Since this sensor has a simple explosion proof structure, it is applicable for commercial fields as it is, however intrinsic explosion proof enclosure is recommended for industrial application.
1. Features and application of NAP-100AM
1) Features :
・Good stability
・Excellent repeatability and detection accuracy
・Good linearity against gas concentration
・Quick response
・Down sizing for design flexibility of gas alarm or detector 2) Applications
・Gas alarm or detector for general combustible gases
・Gas densitometer
・Driving module for gas leakage detector
| Measuring range | 1 - 100%LEL |
| Gas sensitivity | More than 80mV/% of methane |
| Repeatability in the same day | Less than 2% |
| Methane sensitivity stability | Less than 1%/month |
| Zero offset stability | Less than 1mV/month |
