Product Details:
|
| Loop Voltage Vc: | 5.0V±0.1V DC | Heating Voltage VH: | 5.0V±0.1V AC Or DC |
|---|---|---|---|
| Load Resistance RL: | Adjustable | Heating Resistance RH: | 30Ω±3Ω (room Temperature) |
| Highlight: | Household Ammonia Sensor,Household Ammonia Alarm Sensor,MQ137 Ammonia Sensor |
||
Product Description:

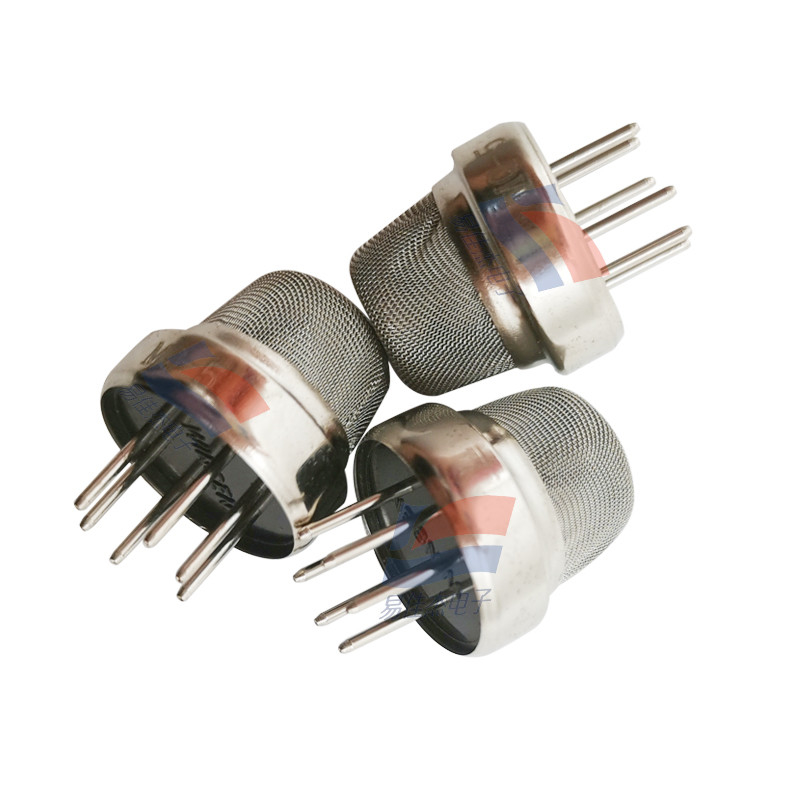

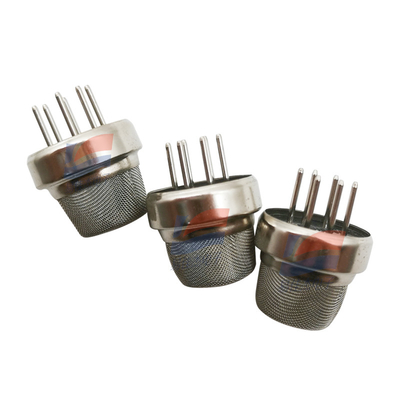

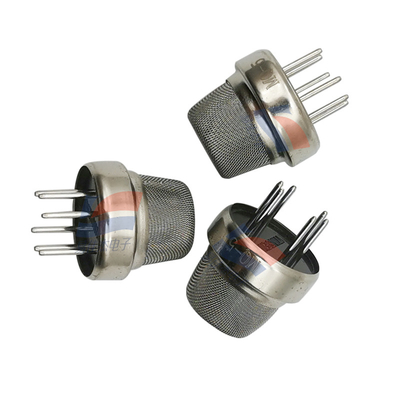

MQ137 Ammonia Sensor For Household Ammonia Alarm
Features:
Gas sensitive material used in the MQ137 gas sensor is tin dioxide (SnO2), which has a low conductivity in clean air. When there is ammonia in the environment of the sensor, the conductivity of the sensor increases with the increase of the concentration of ammonia in the air. A simple circuit can be used to convert the change in conductivity into an output signal corresponding to the concentration of that gas. The MQ137 gas sensor has a high sensitivity to ammonia and is ideal for monitoring other organic amines (such as trimethylamine, ethanolamine, etc.). This sensor can detect a wide range of ammonia containing gases, making it a low-cost sensor suitable for a variety of applications.
Main application
It is widely used in household ammonia alarm, industrial ammonia leak alarm and portable ammonia detector
Specifications:
| Product Type | Planar semiconductor gas sensor |
| Standard package | Plastic seal |
| Detection gas | Ammonia gas |
| Detection concentration | 5 ~ 500ppm ammonia gas |
