Product Details:
|
| Loop Voltage Vc: | ≤24V DC | Heating Voltage VH: | 5.0V±0.1V AC Or DC |
|---|---|---|---|
| Load Resistance RL: | Adjustable | Heating Resistance RH: | RH 170Ω±10Ω (room Temperature) |
| Highlight: | YJJ WSP1110 Nitrogen Dioxide Sensor |
||
Product Description:

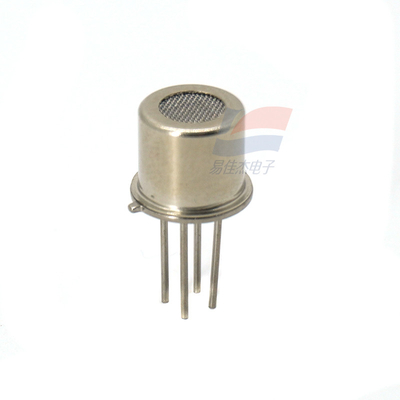

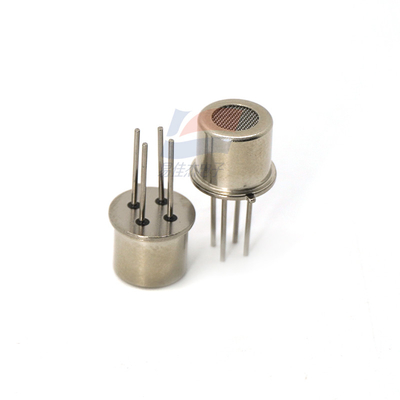

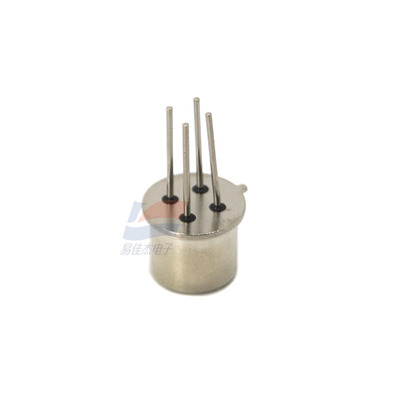

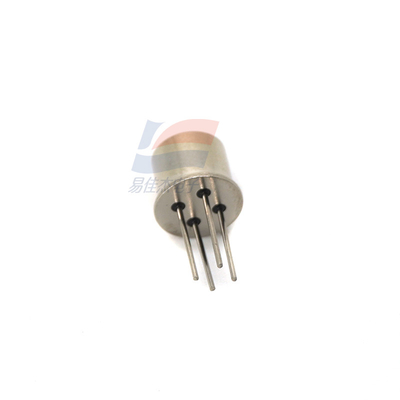

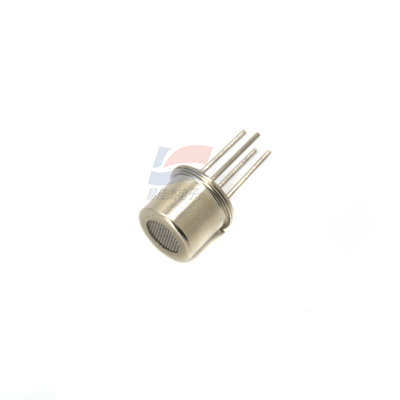

WSP1110 Nitrogen Dioxide Sensor Is Used In Urban Vehicle Exhaust Nitrogen Dioxide Monitoring Devices
Features:
WSP1110 semiconductor nitrogen dioxide sensitive element adopts advanced plane production technology, forming a heater and metal oxide semiconductor gas sensitive material on the micro Al2O3 ceramic substrate, and using electrode leads, encapsulated in a metal tube base and tube cap. When the detected gas is present, the higher the concentration of the gas in the air, the higher the conductivity of the sensor. This change in conductivity can be converted into an output signal corresponding to the gas concentration using a simple circuit.
Main application
Urban vehicle exhaust, industrial sites fuel combustion emissions of nitrogen dioxide monitoring devices
Specifications:
| Product type | Planar semiconductor gas sensor |
| Standard package | Metal package |
| Detection gas | Detect gas NO2 |
| Detection concentration | 0.1～10ppm |
