Product Details:
|
| Loop Voltage Vc: | ≤24V DC | Heating Voltage VH: | 5.0V±0.1V AC Or DC |
|---|---|---|---|
| Load Resistance RL: | Adjustable | Heating Resistance RH: | RH 85Ω±15Ω (room Temperature) |
| Heating Power Consumption PH: | ≤300mW | ||
| Highlight: | YJJ Propane Gas Sensor |
||
Product Description:

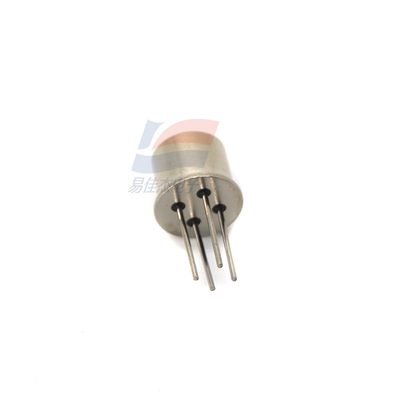

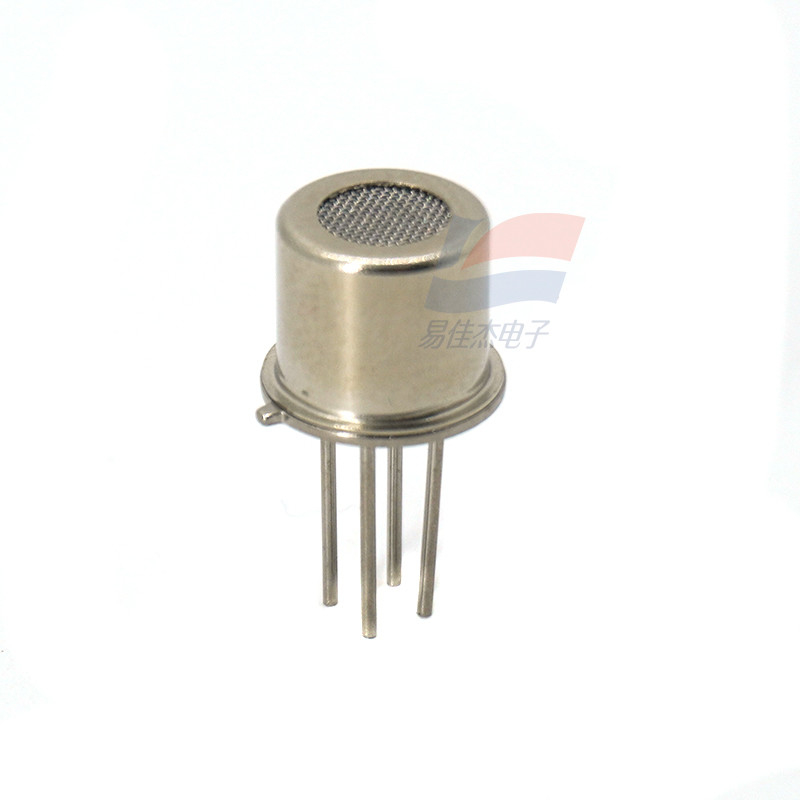

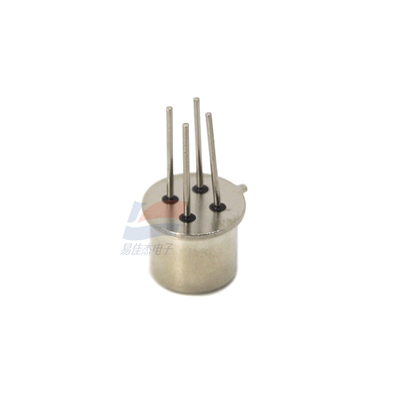

MP-5 Propane Gas Sensor For Flammable Gas leak Alarm
Features:
MP-5 flat semiconductor gas sensor for combustible gas detection adopts advanced flat production technology, forming heater and metal oxide semiconductor gas sensitive material on micro Al2O3 ceramic substrate, and drawing out with electrode leads, and packaging in metal tube base and tube cap. When the detected gas is present, the higher the concentration of the gas in the air, the higher the conductivity of the sensor. This change in conductivity can be converted into an output signal corresponding to the gas concentration using a simple circuit.
Main application
Flammable gas leak monitoring devices, fire/safety detection systems, flammable gas leak alarms, gas leak detectors for homes, factories, and commercial applications
Specifications:
| Product type | Planar semiconductor gas sensor |
| Standard package | Metal package |
| Detection gas | Liquefied gas |
| Detection concentration | 300~10000ppm LPG |
