Product Details:
|
| Measuring Range: | 0-500ppm | Sensitivity Range: | 35nA/ppm ± 15nA/ppm |
|---|---|---|---|
| Expected Operating Life: | >24 Months In Air* | Zero Current At 20oC: | <± 100nA, Typically 40nA |
| Response Time At 20oC: | T50 <30s Calculated From 5min. Expsoure Time T90 <90s Calculated From 5min. Expsoure Time | Temperature Range: | -20°C To +40°C |
| Bias Potential: | 0mV | Linearity: | <10% Full Scale |
| Highlight: | 500ppm Gas Sensor,Low Susceptibility Electrochemical Gas Sensor |
||

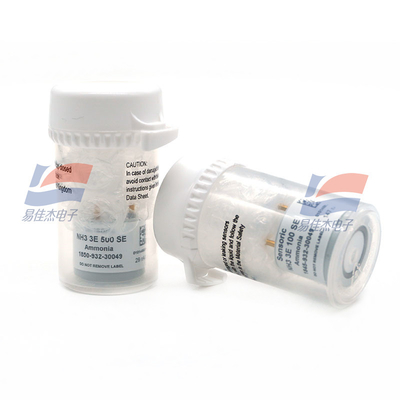

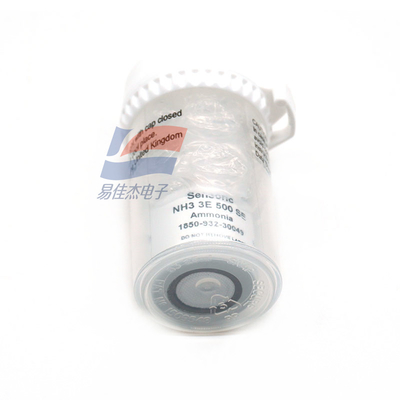

NH3 3E 100 SE Electrochemical Gas Sensor Ammonia Gas Sensor 0-500ppm Low Susceptibility To Abrupt Changes Of Humidity Portable & Fixed Point Applications
Features:
Amperometric 3 electrode sensor cell
Low susceptibility to abrupt changes of humidity
No CO2 interference
High selectivity
0 voltage biased operation
Typical Applications:
Portable & fixed point applications
Monitoring of IDLH levels, General Industry,
Chemical Industry, Food & Refrigeration Industry
Part Number Information:
Mini 1850-932-30009
Sensoric Classic 1850-932-30069
CTL4 Series Adaptation 1850-932-30049
CTL 7 Series Adaptation 1850-932-30079
| Long Term Sensitivity Drift | <5% per 6 months |
| Pressure Coefficient | <0.03% signal/mBar |
| Operating Humidity | 15-90% RH non-condensing |
| Effect of Humidity | No effect on zero reading during abrupt changes of RH |
| Recommended Load Resistor | 100Ω |
| Orientation Sensitivity | None |
| Storage Life | 4 weeks in container |
| Recommended Storage Temperature | 0-20°C |
