Product Details:
|
| Measuring Range: | 0–100 Ppm | Sensitivity Range: | 130 NA/ppm ± 30 NA/ppm |
|---|---|---|---|
| Zero Current At 20°C: | < ± 100 NA | Resolution At 20°C: | < 1 Ppm |
| Bias Potential: | 0 MV | Linearity: | < 10% Full Scale |
| Highlight: | Hydrous Electrolyte Gas Sensor,Leakage Detection Gas Sensor,Leakage Detection Ammonia Gas Sensor |
||

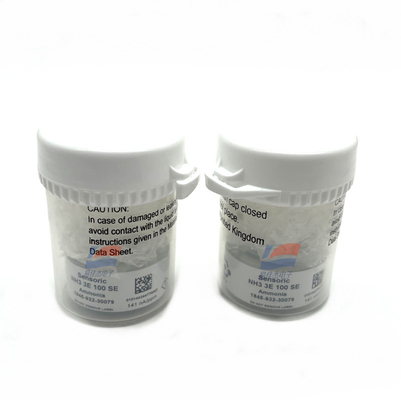

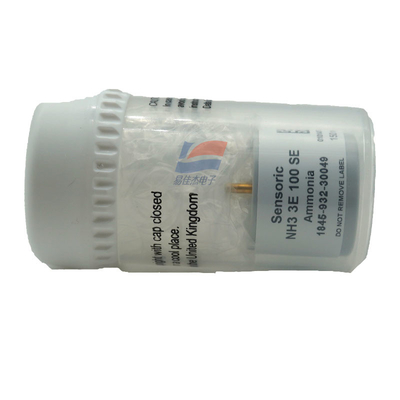

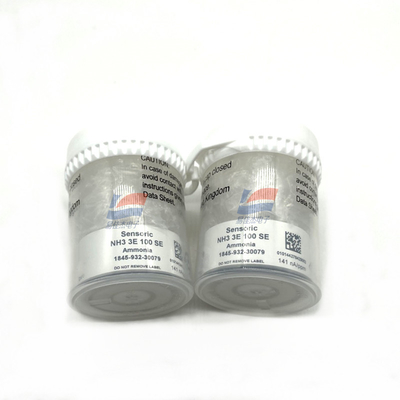

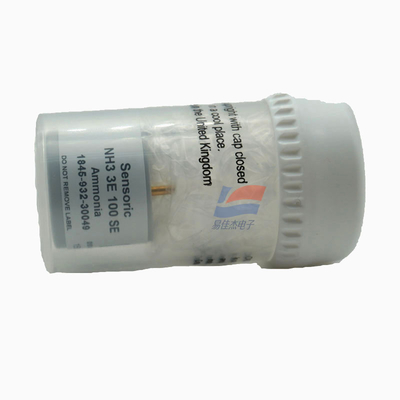

NH3 3E 100 SE Electrochemical Gas Sensor Ammonia Gas Sensor Very Stable Zero Reading Hydrous Electrolyte TLV-monitoring Leakage Detection
FEATURES:
Amperometric 3 electrode sensor cell
Very stable zero reading
Very selective
Highly sensitive
Hydrous electrolyte
TYPICAL APPLICATIONS:
TLV-monitoring, leakage detection
portable & fixed point applications
Food & Refrigeration Industry, General Industry, Semiconductor Industry
PART NUMBER INFORMATION:
MINI 1845-932-30009
SENSORIC CLASSIC 1845-932-30069
CTL 4 series adaptation 1845-932-30049
CTL 7 series adaptation 1845-932-30079
| Operation Conditions Temperature Range | -20°C to +40°C |
| Humidity Range | 15–90% r.H, non–condensing |
| Effect of Humidity Sensor Life Expectancy | > 24 months in air* |
| Warranty | 12 months |
| Long Term Sensitivity Drift | < 5% per 6 months |
