Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 100 Ppm |
|---|---|---|---|
| Maximum Overload: | 200 Ppm | Output Signal: | 110 ± 30 NA/ppm |
| Resolution (Electronics Dependent): | < 0.5 Ppm | T90 Response Time: | < 35 S |
| Typical Baseline Range (pure Air, 20°C): | -3.0 Ppm To 3.0 Ppm | Maximum Zero Shift (+20°C To +40°C): | See Graph |
| Highlight: | Electrochemical Ammonia Gas Sensor,Leak Detection Ammonia Gas Sensor |
||

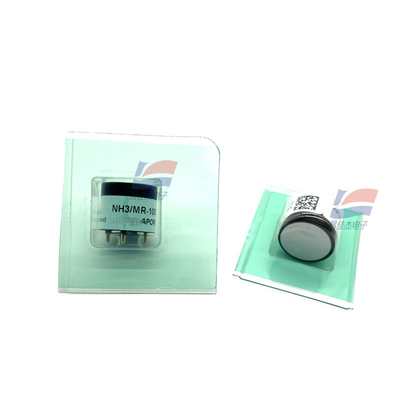

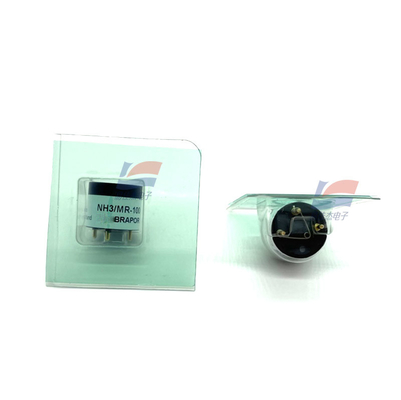

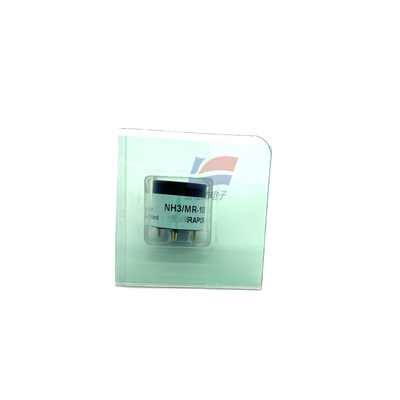

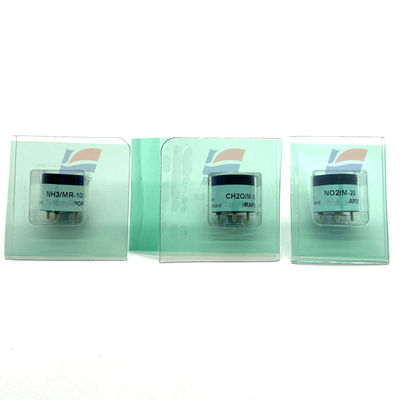

Ammonia Gas Sensor NH3/MR-100
NH3 Gas Sensor in Miniature Housing
Applications:
• Leak Detection
• Discontinuous Measurement
• For Portable Gas Detectors
| Repeatability | < 3% of signal |
| Output Linearity | < 5 % full scale |
| Rec. Load Resistor | 10 - 33 Ω |
| Bias (V_Sens-V_Ref) | not allowed |
| Conformity to RoHS directive | RoHS Compliance |
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -10 °C to 50 °C |
| Pressure Range | Atmospheric |
