Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 1 Ppm |
|---|---|---|---|
| Maximum Overload: | 10 Ppm | Output Signal: | - 2500 ± 1000 NA/ppm |
| Resolution (Electronics Dependent): | < 0.02 Ppm | T90 Response Time: | < 60 S |
| Typical Baseline Range (pure Air, 20°C): | -0.05 Ppm To 0.05 Ppm | Maximum Zero Shift (+20°C To +40°C): | See Graph |
| Highlight: | Highly Sensitive NO2 Measurements,Continuous Air Quality Monitoring |
||

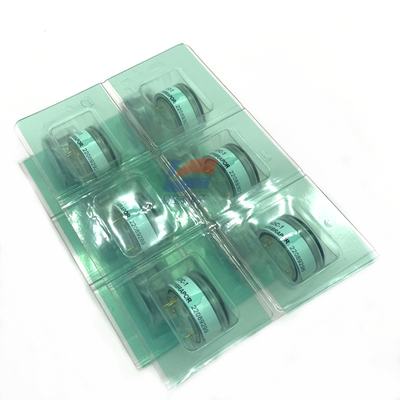

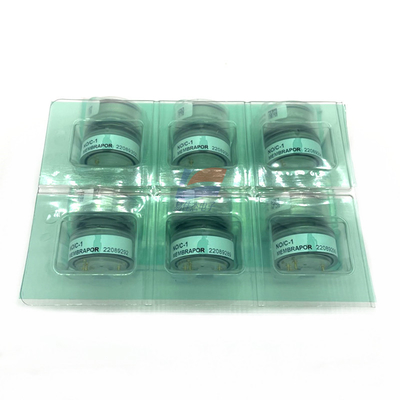

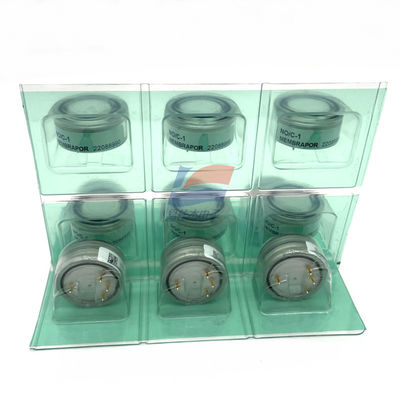

Nitrogen Dioxide Gas Sensor NO2/C-1
NO2 Gas Sensor in Compact Housing
Key Features:
• Highly sensitive NO2 measurements
Applications :
• Continuous Air Quality Monitoring
• Safety and Environmental Control
| Repeatability | < 2 % of signal |
| Output Linearity | Linear |
| Rec. Load Resistor | 10 - 33 Ω |
| Bias (V_Sens-V_Ref) | not recommended |
| Conformity to RoHS directive | RoHS Compliance |
| Relative Humidity Range * | 15 % to 90 % RH non-condensing |
| Temperature Range | -40 °C to 50 °C |
| Pressure Range | Atmospheric ± 10% |
