Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 20 Ppm |
|---|---|---|---|
| Maximum Overload: | 40 Ppm | Output Signal: | - 600 ± 150 NA/ppm |
| Resolution (Electronics Dependent): | < 0.1 Ppm | T90 Response Time: | < 40 S |
| Typical Baseline Range (pure Air, 20°C): | -0.1 Ppm To 0.2 Ppm | Maximum Zero Shift (+20°C To +40°C): | See Graph |
| Highlight: | Portable Gas Detectors Gas Sensor |
||

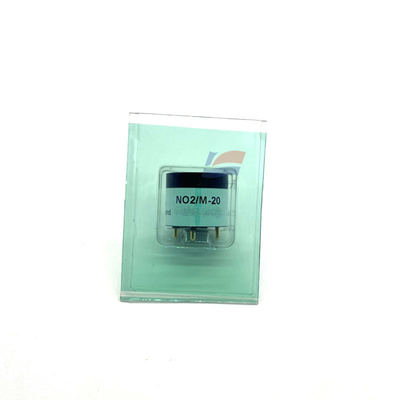

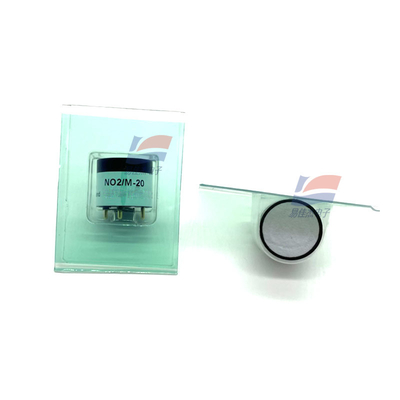

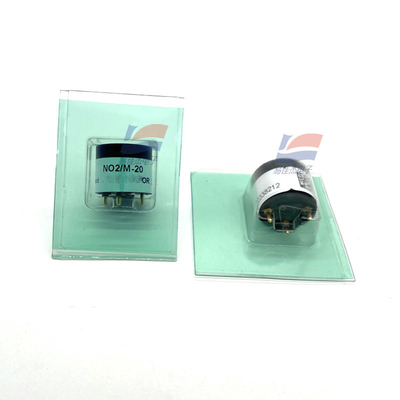

Nitrogen Dioxide Gas Sensor NO2/M-20
NO2 Gas Sensor in Miniature Housing
Applications :
• Continuous Air Quality Monitoring
• Safety and Environmental Control
• For Portable Gas Detectors
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -40 °C to 50 °C |
| Pressure Range | Atmospheric ± 10% |
| Pressure Coefficient | N.D. |
| Humidity Effect | None |
| Expected Operation Life | 2 years in air |
| Expected Long Term Output Drift in air | < 2 % signal loss per month |
| Storage Life | 6 months in container |
