Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 1 Ppm |
|---|---|---|---|
| Maximum Overload: | 10 Ppm | Output Signal: | 5000 ± 1500 NA/ppm |
| Resolution (Electronics Dependent): | < 0.02 Ppm | T90 Response Time: | < 20 S |
| Typical Baseline Range (pure Air, 20°C): | -0.2 Ppm To 0.2 Ppm | Maximum Zero Shift (+20°C To +40°C): | See Graph |
| Highlight: | Highly Sensitive SO2 Gas Sensor,Electrochemical SO2 Gas Sensor |
||

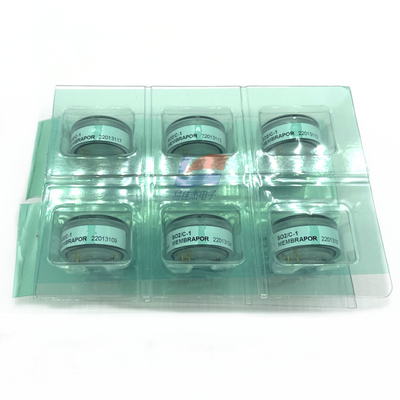

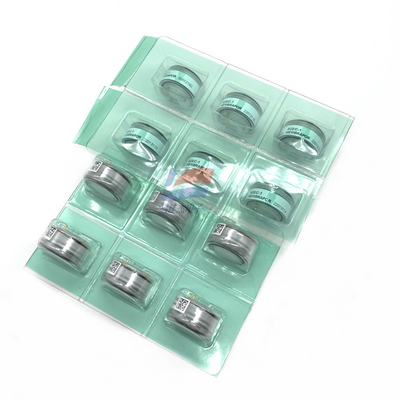

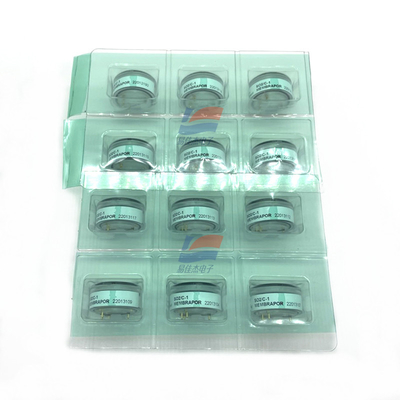

Sulfur Dioxide Gas Sensor SO2/C-1
SO2 Gas Sensor in Compact Housing
Key Features:
• Highly sensitive SO2 measurements
Applications:
• Continuous Air Quality Monitoring
• Safety and Environmental Control
| Rec. Load Resistor | 10 - 33 Ω |
| Bias (V_Sens-V_Ref) | not recommended |
| Conformity to RoHS directive | RoHS Compliance |
| Relative Humidity Range * | 15 % to 90 % RH non-condensing |
| Temperature Range | -20 °C to 50 °C |
| Pressure Range | Atmospheric ± 10% |
| Pressure Coefficient | N.D. |
| Humidity Effect | None |
