Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 100 Ppm |
|---|---|---|---|
| Maximum Overload: | 500 Ppm | Inboard Filter: | To Remove Effect From H2S And HCl |
| Output Signal: | 370 ± 70 NA/ppm | Resolution (Electronics Dependent): | < 0.2 Ppm |
| T90 Response Time: | < 25 S | Typical Baseline Range (pure Air, 20°C): | -0.4 Ppm To 0.4 Ppm |
| Highlight: | SO2/SF-400-S Gas Sensor,Accurate Sulfur Dioxide Gas Sensor,3-Electrode Electrochemical Gas Sensor |
||
Sulfur Dioxide Gas Sensor SO2/SF-200-S SO2/SF-100-S SO2/SF-400-S SO2/SF-10000-S

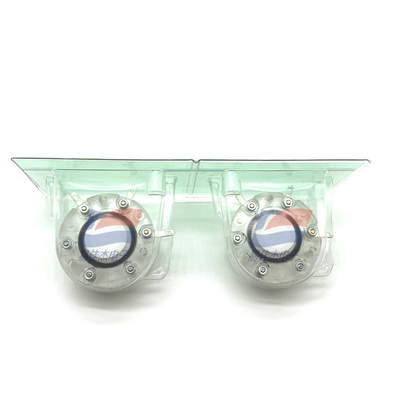

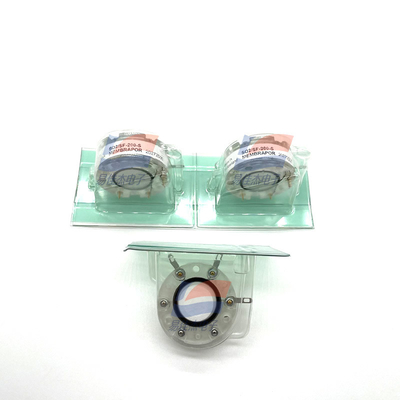

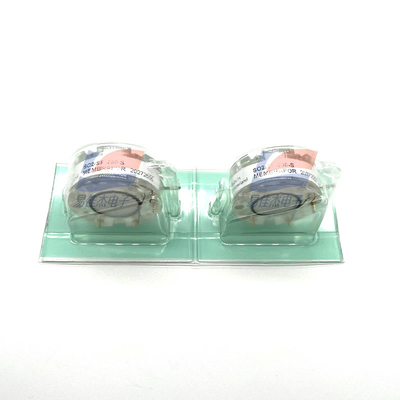

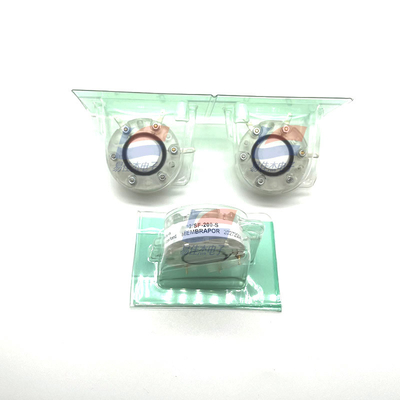

SO2 Gas Sensor in Slim Housing
Applications:
• Continuous Air Quality Monitoring
• Safety and Environmental Control
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -20 °C to 50 °C |
| Pressure Range | Atmospheric ± 10% |
| Pressure Coefficient | N.D. |
| Humidity Effect | None |
| Expected Operation Life | 2 years in air |
| Expected Long Term Output Drift in air | < 2 % signal loss per month |
| Filter Life | Filter Life |
