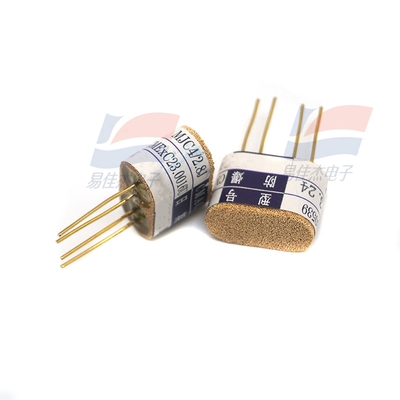

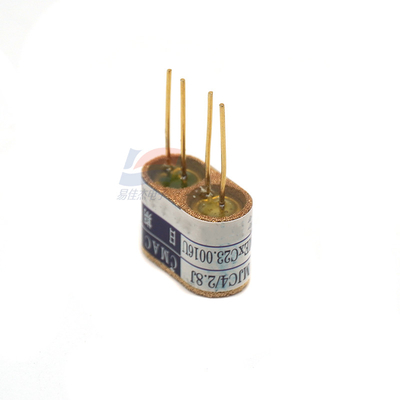

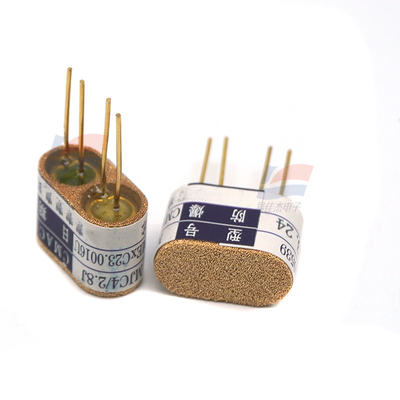

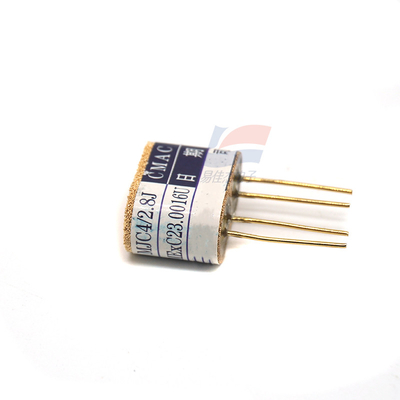

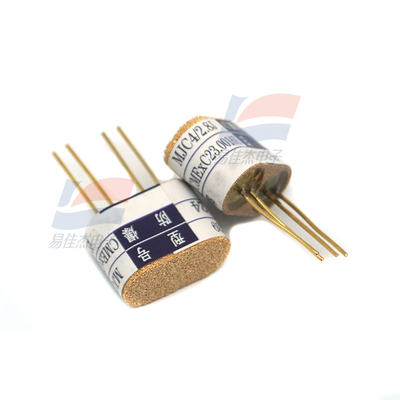

MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation

MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation
MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation

Large Image :  MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation

Product Details:
Place of Origin: China
Brand Name: YJJ
Model Number: MJC4/2.8J
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard Package
Delivery Time: 3-5workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation

Description
Detection Principle: Catalytic Combustion Detection: Gas Ex
Working Voltage: 2.8V (± 0.1V) Working Current: 100mA (± 10mA)
Detection Range: 0-100% Lower Explosion Limit
Highlight:

Stable Catalytic Combustion Sensor

,

Reliable Operation Catalytic Combustion Sensor

,

Quick Response Catalytic Combustion Sensor

MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation



The MJC4/2.8J catalytic combustion combustible gas sensor is composed of a pair of detection elements and compensation elements. The two elements are platinum wire coils wrapped with catalysts and inert substances respectively. The combustible gas will undergo a catalytic combustion reaction on the catalyst of the working element, causing the resistance of the detection element to increase, thereby changing the change of the bridge output voltage, and its change value is linearly positively correlated with the concentration of the combustible gas; since there is no catalytic combustion reaction, there is no resistance change, and the compensation element mainly serves to refer to and compensate for the ambient temperature and humidity.



Application areas
1. Monitoring and alarming of various combustible gases such as methane and propane in industrial production areas;
2. Monitoring and alarming of underground gas (mainly methane) in coal mines and other mining areas;
3. Fixed and portable detection instruments for monitoring gas pipeline leaks.


Product features
1. The output voltage of the bridge circuit is linear
2. Fast response
3. Good repeatability and selectivity
4. Each component works stably and reliably
5. Excellent resistance to H2S and silica gel poisoning



Sensitivity  20-40 mV/1% methane 4
Zero voltage  ±30 mV
Solution  1% lower explosion limit
Response time  Temperature 90 ≤ 30 seconds
Recovery time  Temperature 10 ≤ 30 seconds
Working temperature/humidity range  -20 ~ +60℃ less than 95%RH
Storage temperature/humidity range -20 ~ +60℃ less than 95%RH
Storage temperature/humidity range  ≤±5% full scale/month
Sensitivity drift  ≤±5% full scale
Service life 2



MJC4/2.8J Catalytic Combustion Sensor Quick Response Stable And Reliable Operation 0
