Product Details:
|
| Nominal Range: | 0～100ppm | Maximum Overload: | 500 Parts Per Million |
|---|---|---|---|
| Sensitivity (20℃): | 0.250±0.125μA/ppm | Response Time (T90): | ≤ 120 Seconds |
| Zero Signal (20℃): | -0.2～2.5μA | ||
| Highlight: | 20C Electrochemical Ethylene oxide Gas Sensors |
||

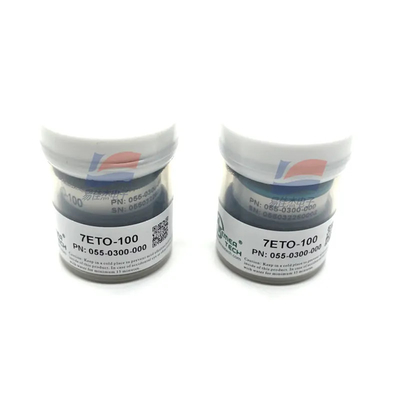

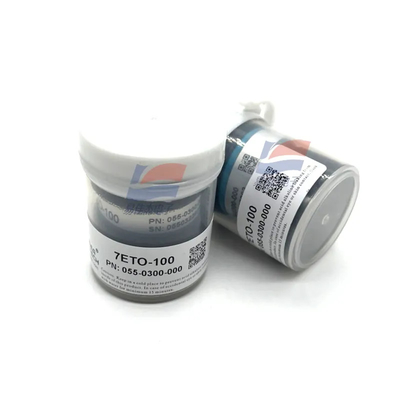

7ETO-100 055-0300-000 Electrochemical Ethylene oxide Gas Sensors 7 Series
This sensor is designed for the measurement of Ethylene Oxide concentration in gas phase. It can be used as a pin-to-pin replacement for the
standard 7-series electrochemical Ethylene Oxide sensors made by other manufacturers.
Installation
Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure
to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of
the plastic enclosure of the sensor. If the sensor is used in extreme environmental conditions, please contact us for more details.
| Temperature Range | 20°C ~ 50°C |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
| Long Time Output Drift | < 2% signal/month |
| Recommended Storage Temp | 10°C ~ 30°C |
| Expected Operating Life | 2 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 12 months |
