Product Details:
|
| Output Signal: | 9-13mV In Air* | Zero Current (offset): | <0.1% O2 |
|---|---|---|---|
| T90 Response Time: | < 5 Seconds | T99.5 Response Time: | <50 Sec |
| Measurement Range: | 0-100% O2 | Linearity: | Linear |
| Temp. Compensation (0-40°C): | < 2% O2 | Ecommended Load Resistor: | Min 10k Ohms |
| Highlight: | Ventilators Gas Sensor,Ventilators Gas Oxygen Sensor |
||

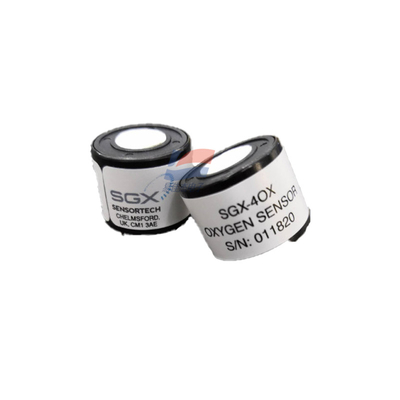

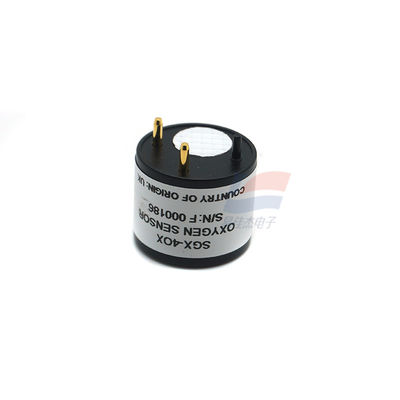

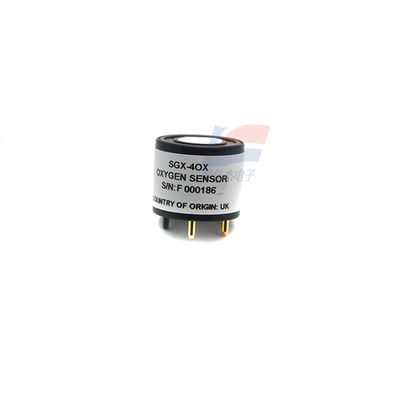

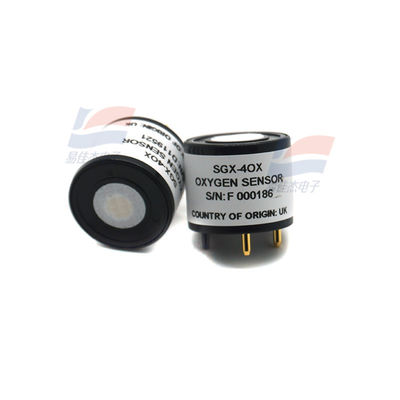

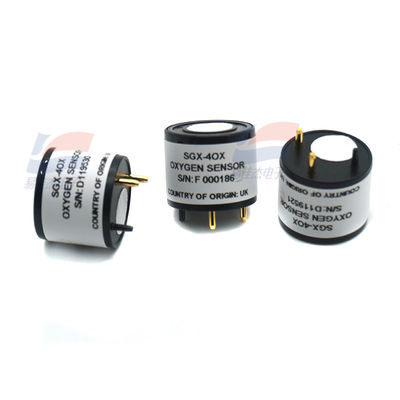

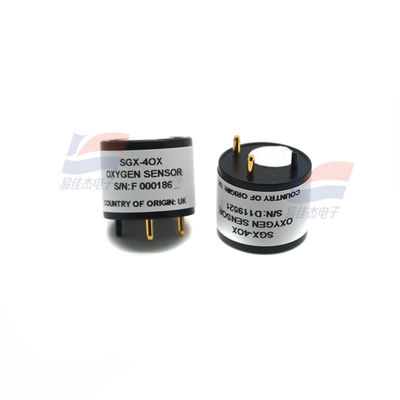

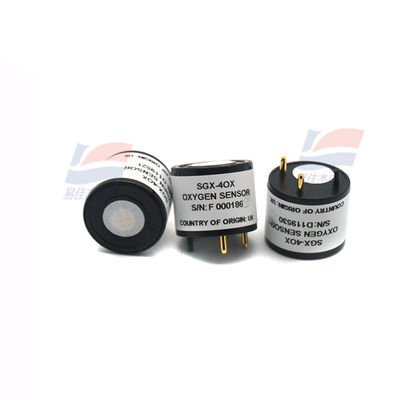

SGX-4OX Electrochemical Gas Sensor Gas Oxygen Sensor 0-100% Oxygen (O2) Sensor With On Board Temperature Compensation For Ventilators
CROSS - SENSITIVITY DATA:
Toxic gases at TLV levels will have no cross-sensitivity effect on SGX-VOX oxygen sensors. At very high levels (i.e. % levels), highly oxidising gases (e.g. ozone, chlorine) will interfere to the extent of their oxygen equivalent, but most other commonly occurring gases will have no effect.
ACID GASES :
Acid gases such as CO2 and SO2 will be absorbed by the electrolyte and tend to increase the flux of oxygen to the electrode. This gives an enhanced oxygen signal of approximately 0.3% of signal per 1% CO2. SGX-VOX sensor is not suitable for continuous operation in concentrations of CO2 above 25%. The SGX-VOX sensor is not designed for use in applications where anaesthetic gases are present.
| Temperature Range | -20°C to +50°C |
| Pressure Range | 500 to 2000 mbar |
| Operating Humidity Range | 0% to 99% RH (non condensing) |
| Long Term Output Drift | <5% per annum |
| Recommended Storage Temp | 0°C to 20°C |
