Product Details:
|
| Working Voltage: | DC 5.0V±0.1V | Working Current: | < 10 MA |
|---|---|---|---|
| Output Data: | UART Output (TTL Level,3 V) Analog Voltage | Ambient Temperature: | -20 ~ 50℃ |
| Highlight: | Portable Stationary Gas Detectors,Electrochemical Module Gas Detectors |
||
Product Description:

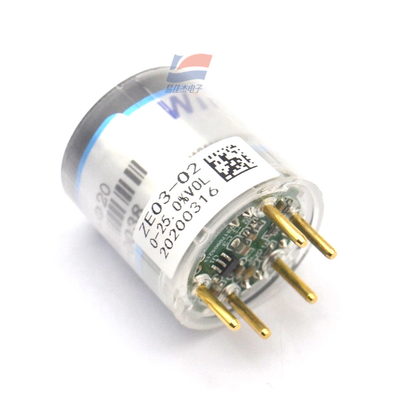

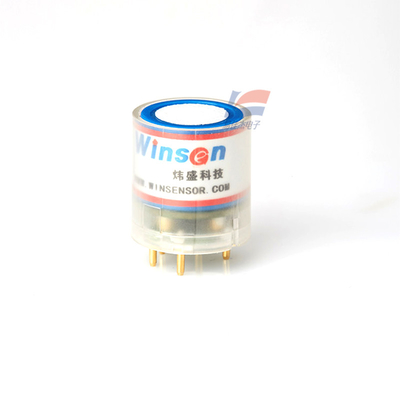

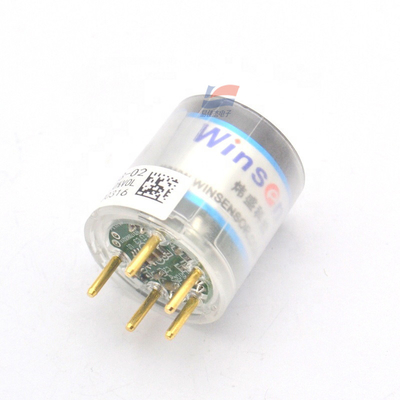

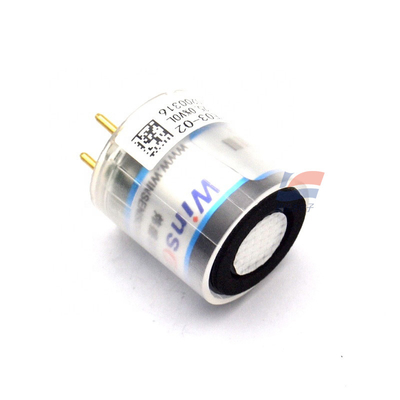

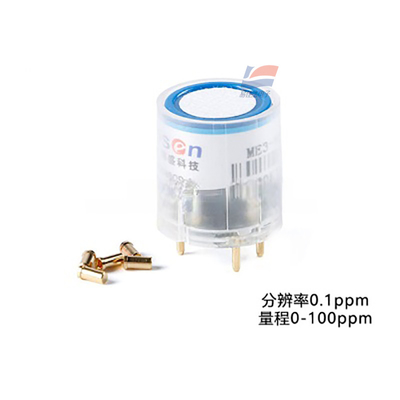

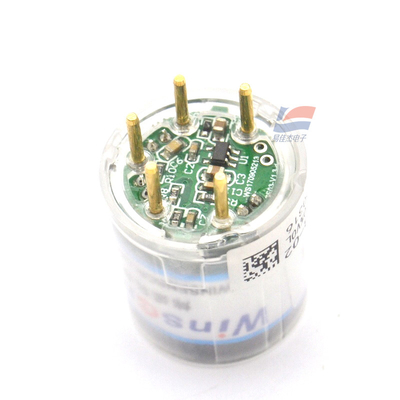

ZE03 Electrochemical Module Is Used For Portable Stationary Gas Detectors
Features:
Electrochemical module ZE03 is a high-performance, universal electrochemical series module, it uses a three-electrode electrochemical gas sensor and high-performance microprocessor, equipped with different gas sensors can measure the corresponding gas. Built-in temperature sensor for temperature compensation, can accurately measure the gas concentration in the environment, while with digital output and analog voltage output, convenient for users to use and debug, greatly shorten the user's design and development cycle. It perfectly combines electrochemical sensors and circuits to meet the needs of customers for different gas detection applications.
Product model ZE03
Detection of gas CO, O2, NH3, H2S, NO2, O3, SO2,
CL2, HF, H2, PH3, HCL, etc
The detection range is shown in Table 2
Working voltage DC 5.0V±0.1V
Working current < 10 mA
Output data UART output (TTL level,3 V)
Analog voltage
Ambient temperature: -20 ~ 50℃
Humidity: 15%-90%RH Non-condensing
Storage ambient temperature: -20 to 50 ° C
Humidity: 15% ~ 90%RH
Life expectancy 2 years (normal air)
Dimensions ø23.3mm*31.2mm (diameter * height)
Weight O2 module: <25g; Other modules: <15g
Specifications:
| Ambient temperature | -20 ~ 50℃ |
| Humidity | 15%-90%RH Non-condensing |
| Storage ambient temperature | -20 to 50 ° C |
| Humidity | 15% ~ 90%RH |
