Product Details:
|
| Detected Gas: | Hydrogen | Interfering Gases: | Alcohol And Other Gases |
|---|---|---|---|
| Output Data: | DAC(0.4 ~ 2V Standard Voltage Signal) | UART Output: | (3V Level) |
| Operating Voltage: | 5V ~ 12V (no Voltage Reverse Protection) | ||
| Highlight: | Electrochemical Hydrogen Module |
||
Product Description:

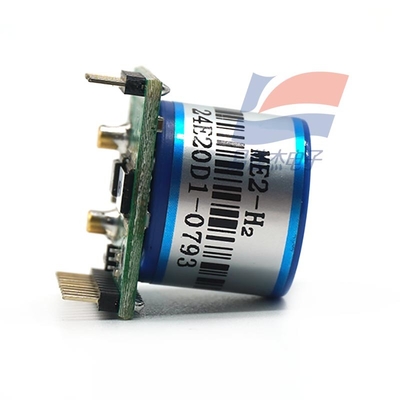

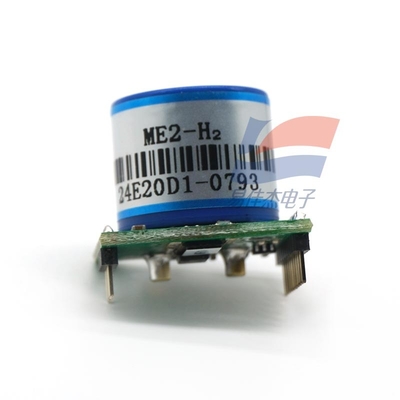

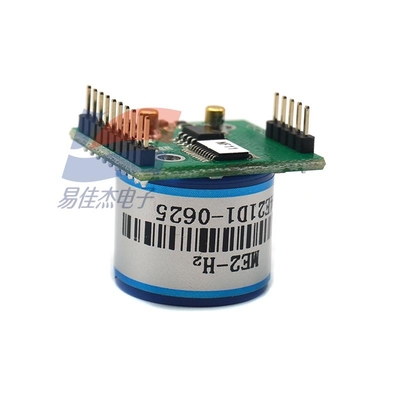

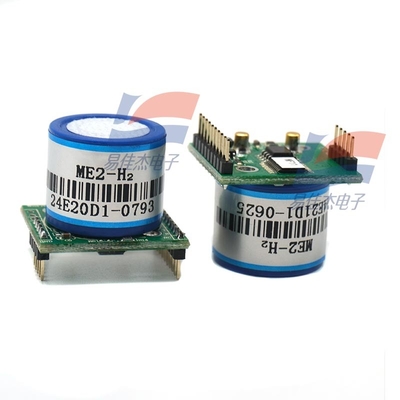

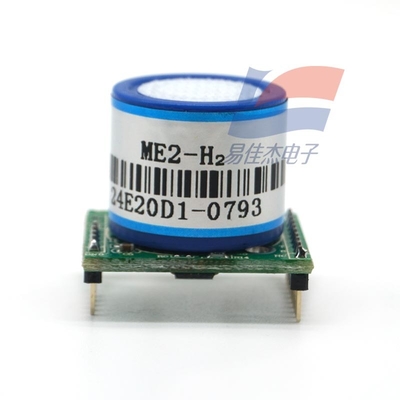

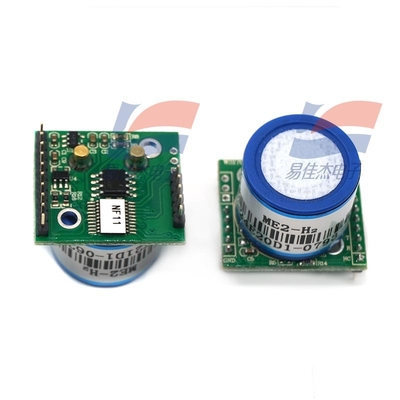

ZE07-H2 Electrochemical Hydrogen Module Is Used For Fresh Air Ventilation Systems
Features:
ZE07-H2 electrochemical hydrogen module is a universal and miniaturized module. The electrochemical principle is used to detect H2 in the air, which has good selectivity and stability. Built-in temperature sensor for temperature compensation; Digital output and analog voltage output at the same time, easy to use. ZE07-H2 is a versatile gas module designed and manufactured by combining mature electrochemical detection technology with sophisticated circuit design.
Product model ZE07-H2
Detection gas hydrogen
Interfering gases Alcohol and other gases
Output data DAC(0.4 ~ 2V standard voltage signal)
UART Output (3V level)
Operating voltage 5V ~ 12V (no voltage reverse protection)
Preheating time ≤3 minutes
Response time ≤60 seconds
Recovery time ≤60 seconds
Measuring range 0 ~ 30000ppm
Resolution 50ppm
Operating temperature -10°C ~ 55°C
Working humidity 15%RH-90%RH (non-condensing)
Storage temperature -10°C to 55°C
Service life 3-5 years (in the air)
Specifications:
| Operating voltage | 5V ~ 12V (no voltage reverse protection) |
| Preheating time | ≤3 minutes |
| Response time | ≤60 seconds |
| Measuring range | 0 ~ 30000ppm |
