Product Details:
|
| Resolution: | 0.1ppm | Operating Temperature: | -10℃ ~ 65℃ |
|---|---|---|---|
| Working Humidity: | 15%RH-90%RH (non-condensing) | Storage Temperature: | -20 ° C To 65 ° C |
| Service Life: | 2 Years (in The Air) | ||
| Highlight: | Disinfection Cabinets Electrochemical Ozone Module |
||
Product Description:

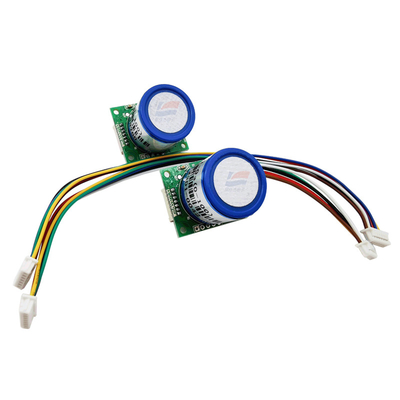

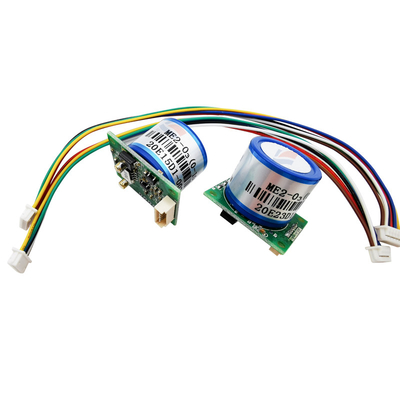

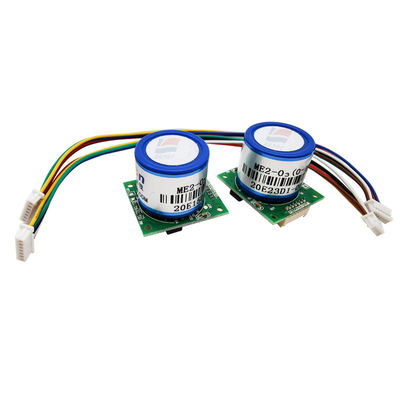

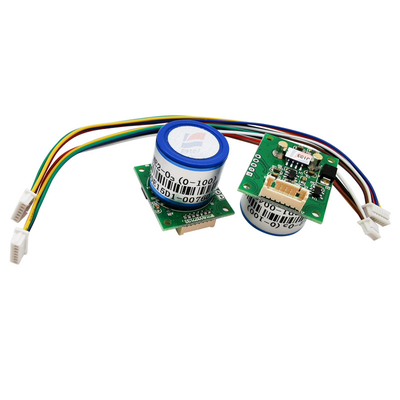

ZE14-O3 Electrochemical Ozone Module Is Used In Disinfection Cabinets Smart Home Equipment And Other Places
Features:
ZE14-O3 electrochemical ozone module is a universal and miniaturized module. The detection of O3 in the air by electrochemical principle has good selectivity and stability. Built-in temperature sensor for temperature compensation; Digital output and analog voltage output at the same time, easy to use. ZE14-O3 is a universal gas module designed and manufactured by combining mature electrochemical detection technology with excellent circuit design.
Product model ZE14-O3
Detection gas ozone
Interference gas NO2, CL2 and other gases
Output data UART output (3V level)
Operating voltage 5±0.1V DC
Preheating time 180 seconds
Response time ≤90 seconds
Recovery time ≤90 seconds
Measuring range 0 ~ 100ppm
Resolution 0.1ppm
Operating temperature -10℃ ~ 65℃
Working humidity 15%RH-90%RH (non-condensing)
Storage temperature -20 ° C to 65 ° C
Service life 2 years (in the air)
Specifications:
| Operating voltage | 5±0.1V DC |
| Preheating time | ≤180 minutes |
| Response time | ≤90 seconds |
| Measuring range | 0 ~ 100ppm |
