Product Details:
|
| Technology: | Electrochemical | Measurement Range: | 1-25% Vol. O2 |
|---|---|---|---|
| Maximum Overload: | 30% Vol. O2 | Output Signal: | 0.10 ± 0.02 MA In Air |
| Response Time (T90): | <15 Seconds | Zero Current (Offset): | <0.6% Vol. O2 |
| Recommended Load Resistor: | 100 Ω | Casing Material: | ABS |
| Highlight: | 4OXV Gas Oxygen Sensor |
||

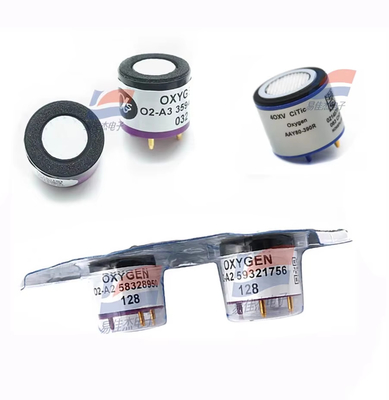

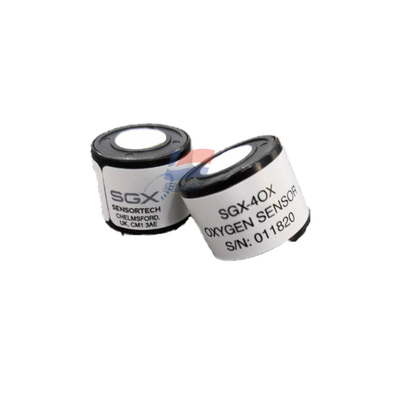

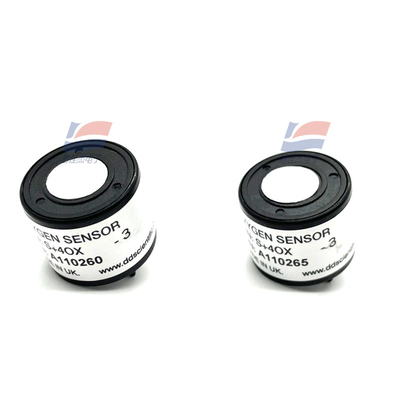

O2-A2 O2-A3 4OX-V 7OX-V S+4OX SGX-4OX Gas Oxygen Sensor Electrochemical Gas Sensor High-performance Leak-free O2 Sensor For Oxygen Gas Analyzer
Key Features and Benefits:
• False alarm immunity
• Reliably meets stated life
• Superior environmental performance
• Enhanced response time in extreme applications
IMPORTANT NOTES:
Obstruction of the vent hole will compromise
performance, and must be avoided. Do not remove label.
Adequate free volume should be provided below the
sensor to ensure full performance.
All tolerances ±0.15 mm unless otherwise stated.
DO NOT solder to pins.
All performance data is based on conditions at 20ºC,
50% RH and 1013 mbar.

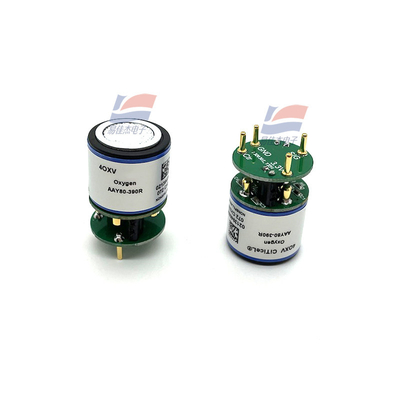

4OXV CiTiceL Oxygen Gas Sensor (O2 Sensor) Key Features and Benefits:
• False alarm immunity
• Enhanced response time in extreme applications
• Reliably meets stated life
• Superior environmental performance
4OXV CiTiceL Oxygen Gas Sensor (O2 Sensor) Technical Specifications
| MEASUREMENT | |
| Technology | Electrochemical |
| Measurement Range | 1-25% vol. O2 |
| Maximum Overload | 30% vol. O2 |
| Output Signal | 0.10 ± 0.02 mA in Air |
| Response Time (T90) | <15 Seconds |
| Zero Current (Offset) | <0.6% vol. O2 |
| Linearity | Can be considered linear in many cases. See Operating Principles (OP-02) for further details. |

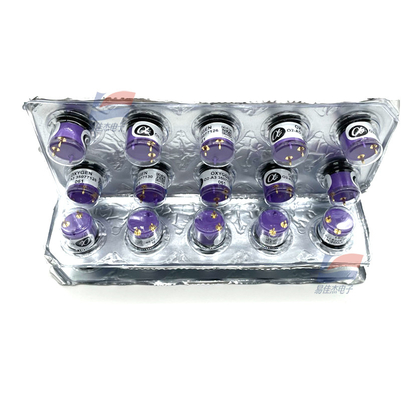

O2-A2:
| O2-A2 Oxygen Sensor PERFORMANCE | ||
| Output | μA @ 20.9% O2 | 80 to 120 |
| Response time | t90 (s) from 20.9% to 0% O2 | < 15 |
| Zero current | μA in N2 | < 2.5 |
| Linearity | % O2 deviation @ 10% O2 | 0.6 |
| O2-A2 Oxygen Sensor LIFETIME | ||
| Output drift | % change in output @ 3 months | < 1 |
| Operating life | months until 85% original output of 20.9% O2 | > 24 |
| O2-A2 Oxygen Sensor ENVIRONMENTAL | ||
| Humidity Sensitivity | % O2 change: 0% to 95% rh @ 40℃ | < 0.7 |
| CO sensitivity | % (change O2 reading) / % CO2 @ 5% CO2 | 0.1 |
| Pressure sensitivity | (% change of output)/(% change of pressure) @ 20kPa | < 0.1 |

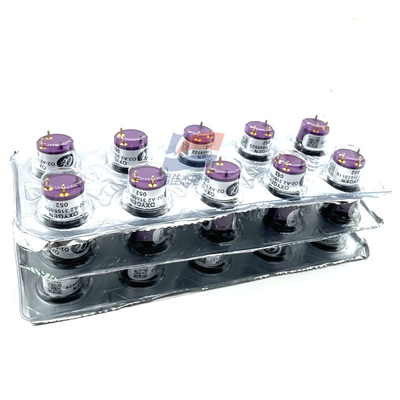

O2-A3:
| O2-A3 Oxygen Sensor O2 Sensor PERFORMANCE | ||
| Output | μA @ 22℃, 20.9% O2 | 55 to 85 |
| Response time | t90 (s) from 20.9% to 0% O2 (47W load resistor) | < 15 |
| Zero current | μA @ 99.99% N2, 22℃ | < 2.5 |
| O2-A3 Oxygen Sensor O2 Sensor LIFETIME | ||
| Output drift | % change in output @ 3 months | < 2 |
| Operating life | months until 85% original output in 20.9% O2 | > 36 |

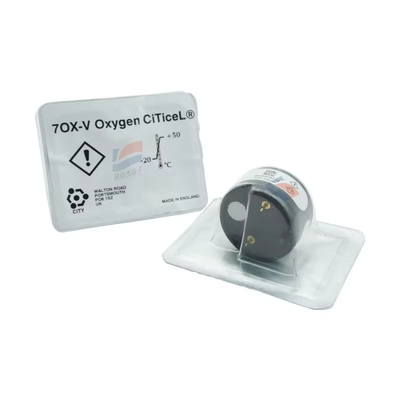

7OXV Oxygen Gas Sensor Key Features and Benefits:
• Robust, industry standard 7-Series packaging
• Compact size
| ENVIRONMENTAL | |
| Operating Temperature Range | -20°C to +50°C |
| Recommended Storage Temp | 0°C to 20°C |
| Temperature Coefficient | 0.2% signal / °C |
| Absolute Pressure Range | Atmospheric ± 10% |
| Differential Pressure Range | 40 mBar maximum |
| Pressure Coefficient | <0.02% signal / mBar |
| Relative Humidity Range | Intermittent:0 to 99%RH non-condensing |
| Continuous:15 to 99%RH non-condensing | |
