Product Details:
|
| Operating Temperature: | -10℃ ~ 55℃ | Working Humidity: | 15%RH-90%RH (non-condensing) |
|---|---|---|---|
| Storage Temperature: | -10 ° C To 55 ° C | Service Life: | 2 Years (in The Air) |
| Highlight: | Electrochemical Carbon Monoxide Module,Household Carbon Monoxide Module |
||
Product Description:

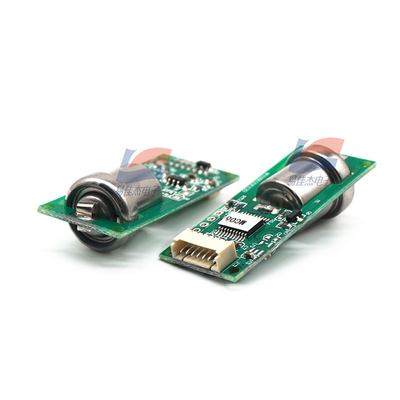

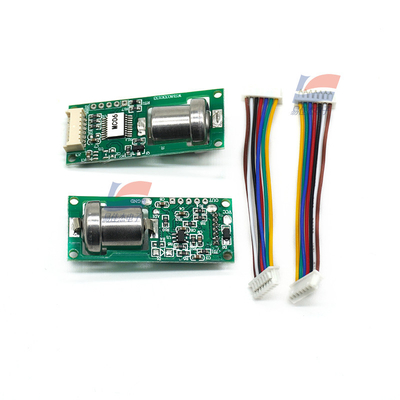

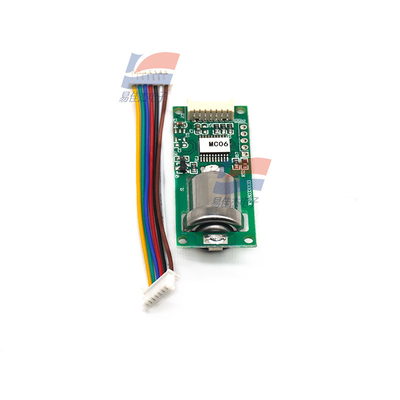

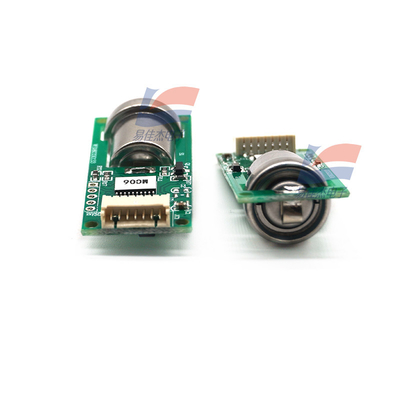

ZE16-CO Electrochemical Carbon Monoxide Module Is Used In Household Carbon Monoxide Alarms
Features:
ZE16-CO electrochemical carbon monoxide module is a universal and miniaturized module. The electrochemical principle is used to detect CO in the air, which has good selectivity and stability. Built-in temperature sensor for temperature compensation; Digital output and analog voltage output at the same time, easy to use. ZE16-CO is a versatile gas module designed and manufactured by combining mature electrochemical detection technology with sophisticated circuit design.
Product model ZE16-CO
Detection gas carbon monoxide
Interfering gases Alcohol and other gases
Output data UART output
Operating voltage 5 V (DC)
Working current < 5mA
Preheat time 30 seconds
Response time ≤30 seconds
Recovery time ≤30 seconds
Measuring range 0-500ppm
Resolution 1ppm
Operating temperature -10℃ ~ 55℃
Working humidity 15%RH-90%RH (non-condensing)
Storage temperature -10 ° C to 55 ° C
Service life 2 years (in the air)
Specifications:
| Preheat time | 30 seconds |
| Response time | ≤30 seconds |
| Measuring range | 0 ~ 500ppm |
| Resolution | 0.1ppm |
