Product Details:
|
| Operating Temperature: | -10℃ ~ 55℃ | Working Humidity: | 15%RH-90%RH (non-condensing) |
|---|---|---|---|
| Storage Temperature: | -20℃ ~ 55℃ | Service Life: | 2 Years (in The Air) |
| Highlight: | Electrochemical Ozone Sensor Module |
||
Product Description:

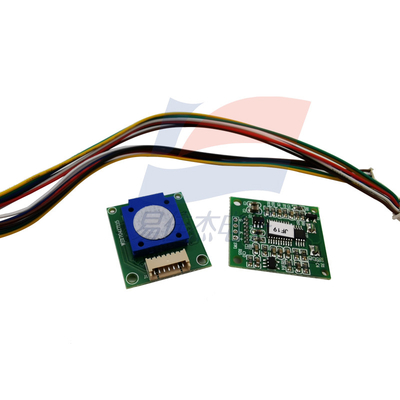

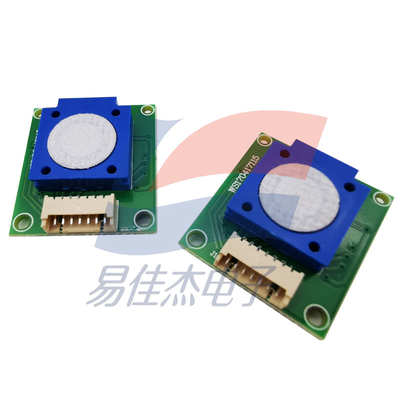

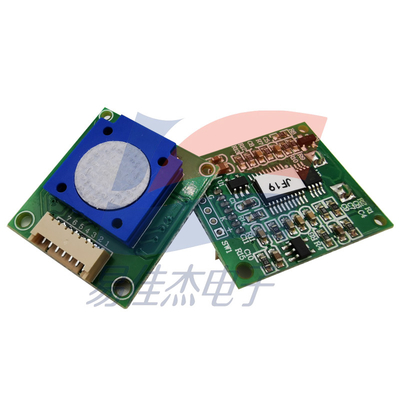

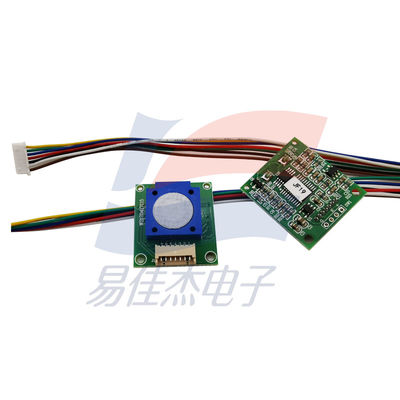

ZE25-O3 Electrochemical Ozone Sensor Module Is Used In Air Quality Monitoring Equipment
Features:
ZE25-O3 electrochemical ozone module is a universal and miniaturized module. Using electrochemical principle to detect ozone gas in the air, it has good selectivity and stability. Built-in temperature sensor, temperature compensation; At the same time with digital output and analog voltage output mode, easy to use. ZE25-O3 is a universal gas module designed and manufactured by combining mature electrochemical detection technology with sophisticated circuit design.
Product model ZE25-O3
Detection gas O3
Interference gas NO2, CL2 and other gases
Output data DAC(0.4 ~ 2V voltage signal corresponding concentration: 0 ~ 10PPM)
UART Output (3V level)
Operating voltage 3.7V~5.5V (no voltage reverse protection)
Preheating time ≤3 minutes
Response time ≤90 seconds
Recovery time ≤90 seconds
Measuring range 0~10ppm
Resolution 0.01ppm
Operating temperature -10℃ ~ 55℃
Working humidity 15%RH-90%RH (non-condensing)
Storage temperature -20℃ ~ 55℃
Service life 2 years (in the air)
Specifications:
| Preheat time | 30seconds |
| Response time | ≤30 seconds |
| Measuring range | 0 ~ 10ppm |
| Resolution | 0.01ppm |
