Product Details:
|
| UART Output: | (3V-TTL Level) | Operating Voltage: | 3.7V ~ 5.5V (no Voltage Reverse Protection) |
|---|---|---|---|
| Operating Temperature: | -20℃ ~ 50℃ | Working Humidity: | 15%RH-90%RH (non-condensing) |
| Storage Temperature: | -20℃ ~ 50℃ | ||
| Highlight: | Portable Instrumentation Electrochemical Ozone Module,Portable Instrumentation Ozone Module |
||
Product Description:

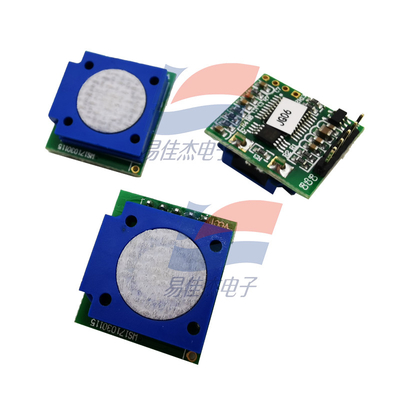

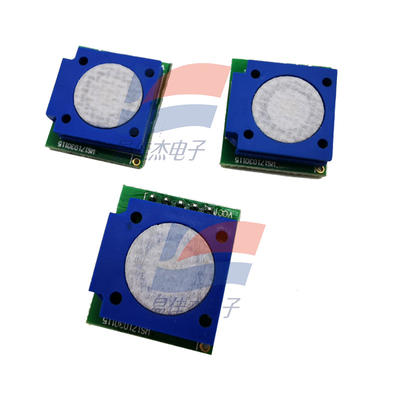

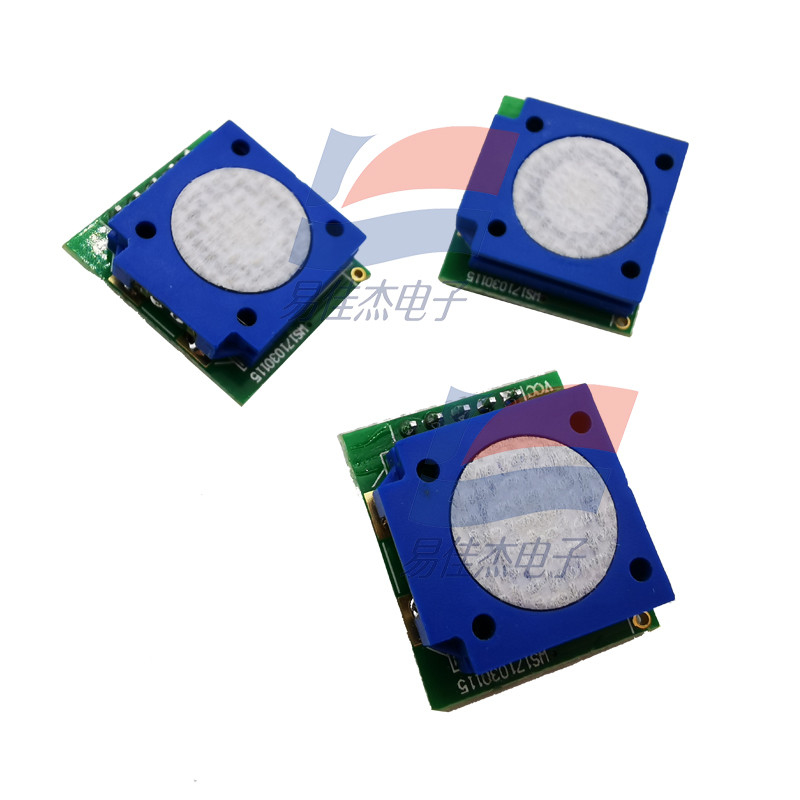

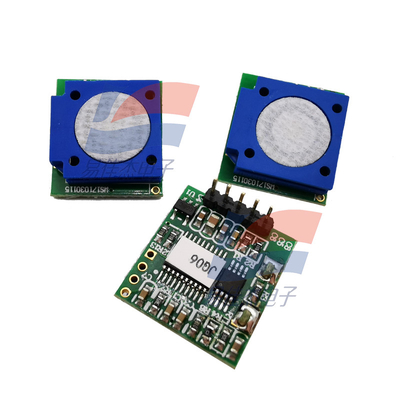

ZE27-O3 Electrochemical Ozone Module Is Used For Portable Instrumentation
Features:
ZE27-O3 electrochemical ozone module is a universal and miniaturized module. Using electrochemical principle to detect ozone gas in the air, it has good selectivity and stability. Built-in temperature sensor for temperature compensation; With digital output, easy to use. ZE27-O3 is a universal gas module designed and manufactured by combining mature electrochemical detection technology with excellent circuit design.
Product model ZE27-O3
Detect the gas ozone O3
Interference gas NO2, CL2 and other gases
Output signal
UART output (3V-TTL level)
Operating voltage 3.7V ~ 5.5V (no voltage reverse protection)
Preheating time ≤3 minutes
Response time ≤90 seconds
Recovery time ≤90 seconds
Measuring range 0 ~ 10 ppm
Resolution 0.01ppm
Operating temperature -20℃ ~ 50℃
Working humidity 15%RH-90%RH (non-condensing)
Storage temperature -20℃ ~ 50℃
Service life 2 years (in the air)
Specifications:
| Preheat time | ≤3 minutes |
| Response time | ≤90 seconds |
| Measuring range | 0 ~ 10ppm |
| Resolution | 0.01ppm |
