Product Details:
|
| Operating Temperature: | 0 ~ 50℃ | Operating Humidity: | ≤ 95%RH |
|---|---|---|---|
| Storage Temperature: | -20 ~ 60℃ | Storage Humidity: | ≤ 60%RH |
| Highlight: | YJJ ZP01 Air Quality Module,Intelligent Air Quality Module,Integrated Ceiling Air Quality Module |
||
Product Description:

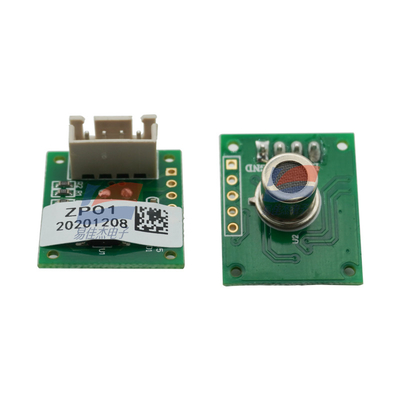

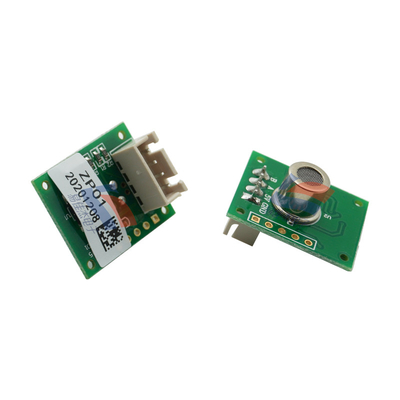

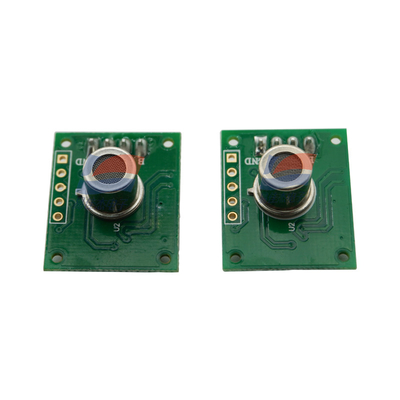

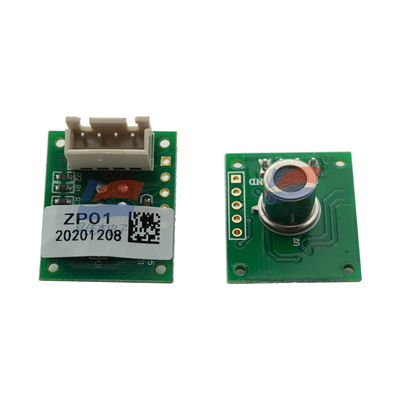

ZP01 Air Quality Module Is Used For Intelligent Integrated Ceiling Air Quality Monitor
Features:
ZP01 air quality module uses an advanced chip thick film semiconductor gas sensor. The sensor has high sensitivity to organic volatile gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol, cigarette smoke, flavor and so on. After aging, debugging, calibration and calibration, the module has good consistency and extremely high sensitivity.
Product Model ZP01 Air quality module
Detection of gases formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, ammonia, cigarette smoke, flavor, etc
Physical port XH2.54-4P terminal socket
Output data 0-3 pollution signal
Operating voltage 5.0V±0.2V DC (no voltage reverse protection)
Output data TTL level (built-in 200Ω protection resistance)
Working current ≤60mA
Preheating time ≤3 minutes
Response time ≤20 seconds
Recovery time ≤60 seconds
Operating temperature 0 ~ 50℃
Operating humidity ≤ 95%RH
Storage temperature -20 ~ 60℃
Storage humidity ≤ 60%RH
Overall dimensions 24×20×16mm (L×W×H)
Weight ≤20g
Sensitivity attenuation ≤1%/ year
Specifications:
| Operating voltage | 5.0V±0.2V DC |
| Response time | ≤3 minutes |
| Working current | < 60 (mA) |
| Sensitivity attenuation | ≤1%/ year |
