Product Details:
|
| Operating Temperature: | 0 ~ 50℃ | Operating Humidity: | ≤ 95%RH |
|---|---|---|---|
| Storage Temperature: | -20 ~ 60℃ | Storage Humidity: | ≤ 60%RH |
| Weight: | ≤20g | ||
| Highlight: | Ventilation Fan Air Quality Module |
||
Product Description:

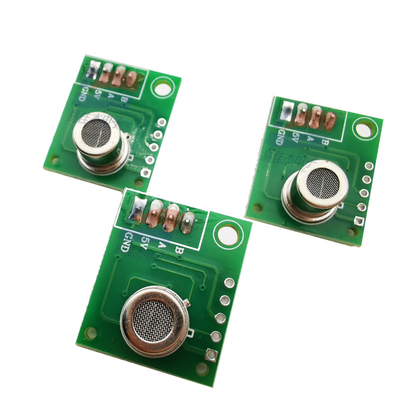

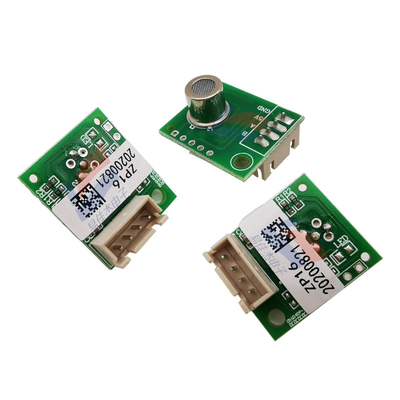

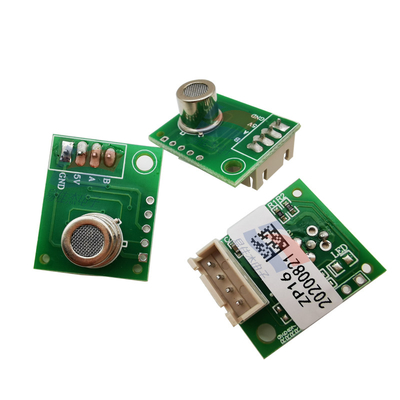

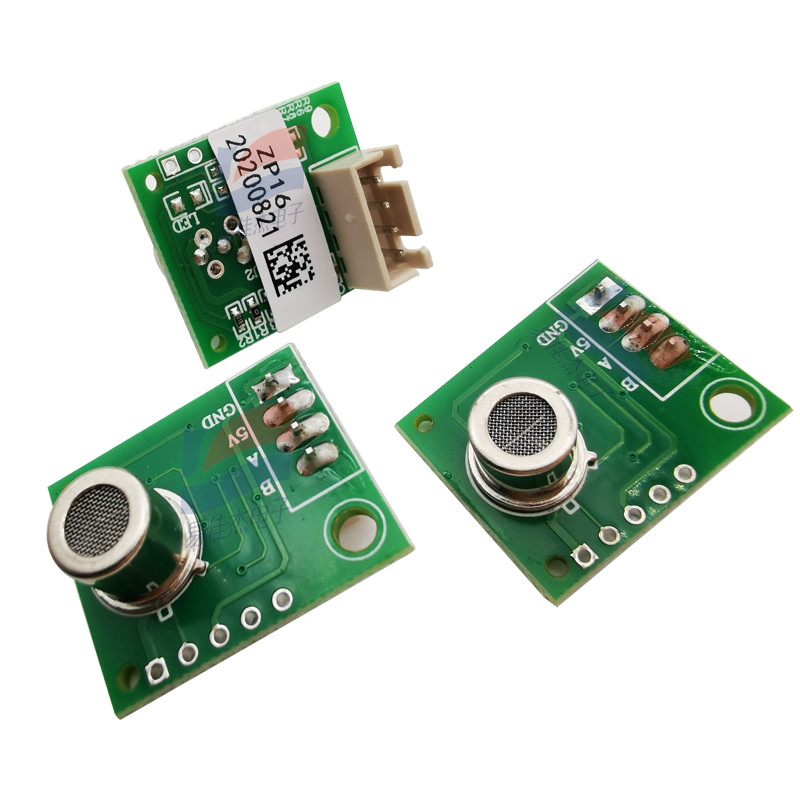

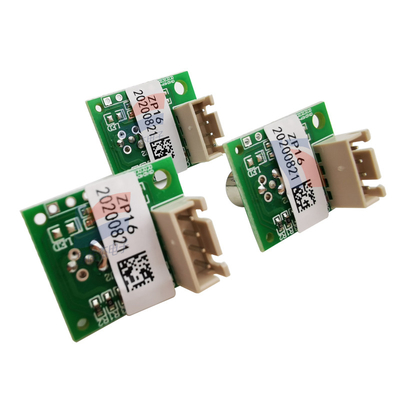

ZP16 Air Quality Module For Air Quality Detector Ventilation Fan
Features:
Air quality module adopts advanced chip thick film semiconductor gas sensor, which has extremely high sensitivity to organic volatile gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol, cigarette smoke and flavor. After aging, debugging, calibration and calibration, the module has good consistency and extremely high sensitivity.
Product Model ZP16 Air quality module
Detection of gases formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, ammonia,
Cigarette smoke, perfume and other gases
Physical interface XH2.54-4P terminal
Range 0-10mg/m³
Resolution 0.05mg/m³
Operating voltage 5.0±0.2V DC (no voltage reverse protection)
Output Data type UART(5V) Output
Working current ≤60mA
Preheat time 3 minutes
Operating temperature 0 ~ 50℃
Operating humidity ≤ 95%RH
Storage temperature -20 ~ 60℃
Storage humidity ≤ 60%RH
Weight ≤20g
Specifications:
| Operating voltage | 5.0V±0.2V DC |
| Response time | 0.05mg/m³ |
| Working current | < 60 (mA) |
| Sensitivity attenuation | ≤ 60%RH |
