Product Details:
|
| Measuring Range: | 0 - 1000 | Accuracy: | ±20 Ppb |
|---|---|---|---|
| Sensor Output: | Formaldehyde Concentration (ppb) | Cross Sensitivity To Ethanol: | < 0.5% |
| Detection Limit: | < 20 | Lifetime: | > 6 Years |
| Highlight: | HVAC Formaldehyde Sensor Module,SFA30 Formaldehyde Sensor Module |
||

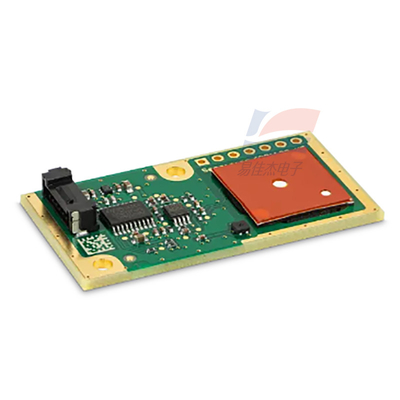

SFA30 Formaldehyde Sensor Module for HVAC and Indoor Air Quality Applications
Target applications
▪ Real-time reading of HCHO gas concentration in parts per billion
▪ Air Conditioners and Air Exchangers
▪ Air Purifiers
▪ Indoor Air Quality Monitors
Key features
▪ Low cross-sensitivity to ethanol
▪ Long-term stability and 6 years’ service life time
▪ Patented electrochemical cell with anti-dry technology
▪ I2C/UART interface with lifetime-calibrated output
▪ Fully temperature and humidity compensated via Sensirion RHT sensor
| Supply voltage | 3.15 - 5.5 |
| Average supply current | 1000 microamps |
| Maximum supply current | 5000 microamps |
| Operating temperature range | 0 - 40 degrees Celsius |
| Dimensions | 46 x 24 x 5.5 mm |
| Typical temperature accuracy | 0.2 degrees Celsius |
| Typical relative humidity accuracy | 2.5 RH |
| Operating relative humidity range | 10 - 90 RH |
