Product Details:
|
| Measuring Range: | 0 - 1000 | Accuracy: | ±20 Ppb |
|---|---|---|---|
| Sensor Output: | Formaldehyde Concentration | Cross Sensitivity To Ethanol: | < 0.3% |
| Supply Voltage: | 1.62 - 3.6 | ||
| Highlight: | Indoor Air Quality Formaldehyde Sensors,Electrochemical Formaldehyde Sensors,Low Power Use Formaldehyde Sensors |
||

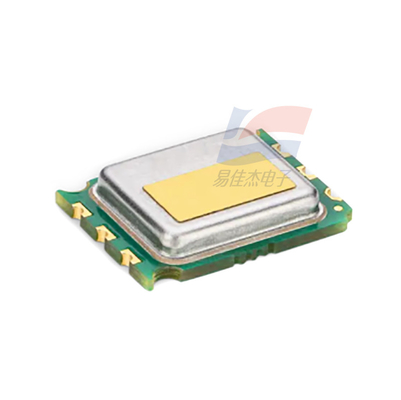

SFA40 Electrochemical Formaldehyde Sensors Tiny Low Power Use For Indoor Air Quality Monitors
The SFA40 is one of the world's smallest electrochemical formaldehyde sensors measuring just 10 x 13 x2.4 mm*, unlocking vast new applications. The sensor provides a digital output with exceptional selectivity and accuracy, integrating an electrochemical cell and a specialized ASlC. it features unprecedented low power consumption and is designed for easy integration into air purifiers, indoor air quality monitors and air conditioners.
Applications
*Air purifiers
*Indoor air quality monitors
*Compact,portable and non-rechargeable battery driven formaldehyde monitors
*Air conditioners
| Average supply current | 80 microamps |
| Maximum supply current | 2 milliamps |
| Interface | I²C |
| Dimensions (L x W x H) | 13 x 10 x 2.4 mm |
