Product Details:
|
| Temperature: | -20°C To +55°C | Relative Humidity: | 10 % To 90 % |
|---|---|---|---|
| Pressure: | 80 KPa To 120 KPa | Automatic According To Sensor Type Connected: | Automatic According To Sensor Type Connected |
| Highlight: | SPXCDALMHX hydrogen sulfide gas detector,Stationary hydrogen sulfide gas detector,SPXCDALMHX Gas sensor |
||

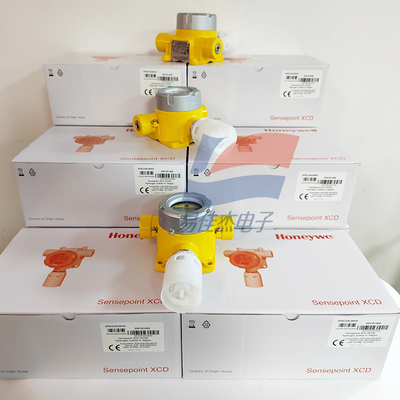

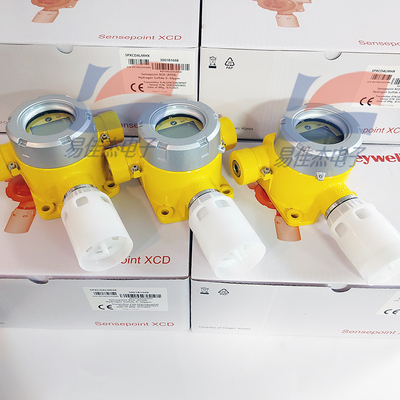

Gas sensor SPXCDALMHX Stationary hydrogen sulfide gas detector For gas alarms
Information:
This Technical Manual is for use with the Sensepoint XCD range transmitters only.
The Start-up/Surge/In rush current is dependent on the type of power supply used. The typical start-up current for Sensepoint XCD is less than 800 mA. Measure the start-up current using the specific power supply before installation to ensure suitability for your application.
Analytics can take no responsibility for installation and/or use of its equipment if not done so in accordance with the appropriate issue and/or amendment of the Technical Manual.
The reader of this Technical Manual should ensure that it is appropriate in all details for the exact equipment to be installed and/or operated. If in doubt, contact Analytics for advice.
Transmitter:

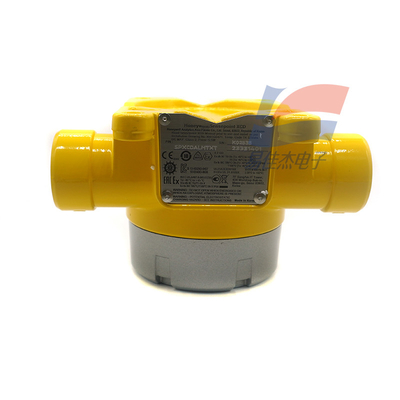

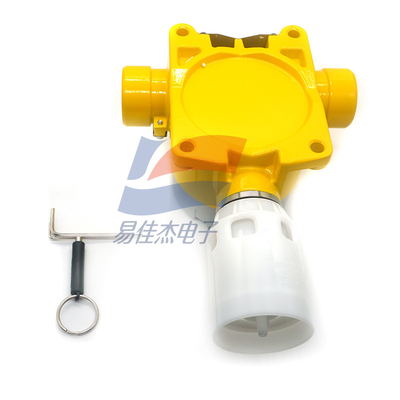

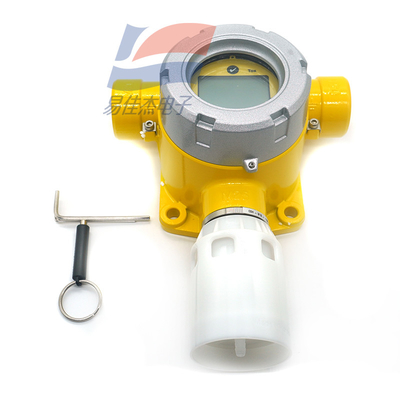

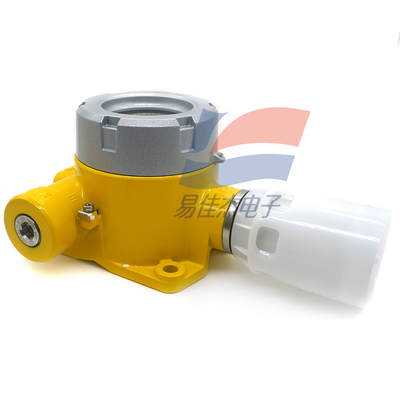

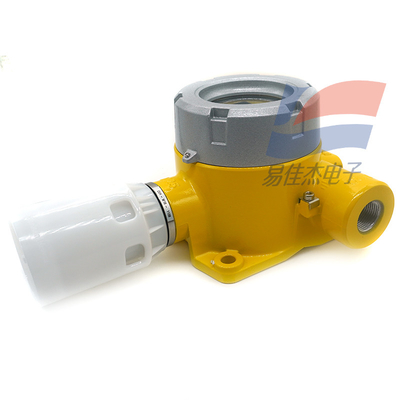

The transmitter enclosure has three threaded entries. The two cable/conduit entries either side of the upper part of the transmitter housing are for connecting the power source, signal output and relay contacts to associated signalling equipment. The bottom entry allows direct connection of the sensor socket. There is a mounting plate incorporated into the transmitter housing allowing for various mounting configuration options.
| Current Output Signal | 4~20mA |
| -VE Supply(0VDC) | 0V |
| +VE Supply | 24V |
