Product Details:
|
| Detection Range: | 500 To 10,000ppm | Heater Voltage: | 5.0±0.2V AC/DC |
|---|---|---|---|
| Heater Resistance: | Room Temperature About 59Ω | Warm-up Time Before Test: | Seven Days |
| Highlight: | Household Gas Leak Alarms Gas Sensor,Long Service Life Gas Sensor,High Sensitivity Gas Sensor |
||

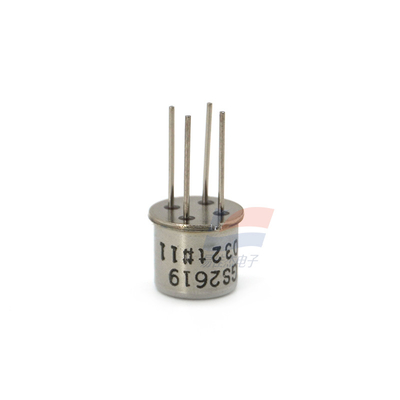

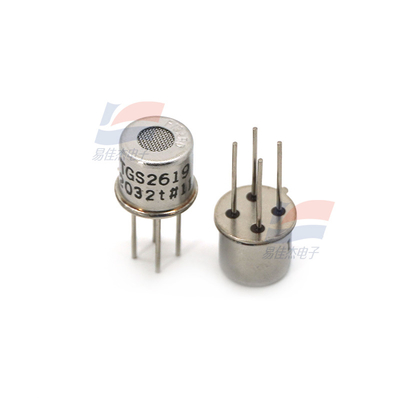

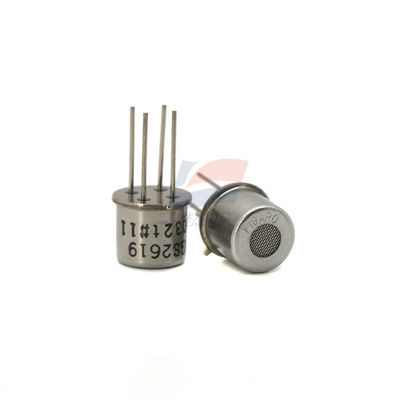

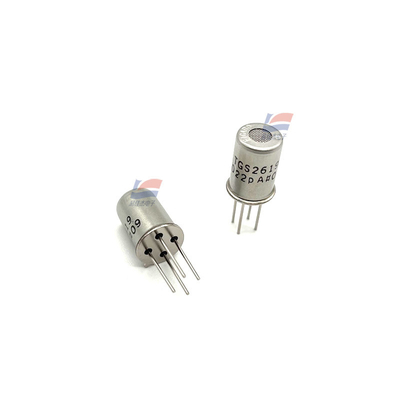

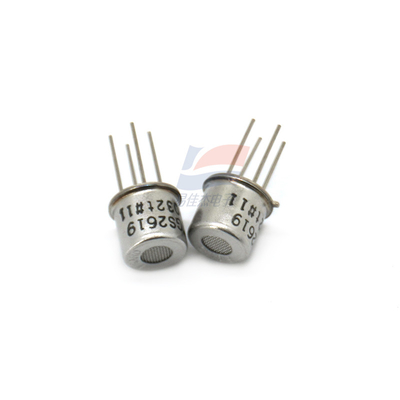

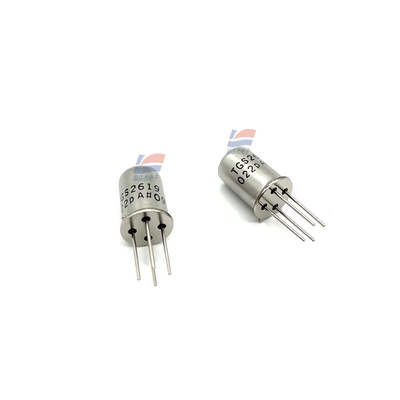

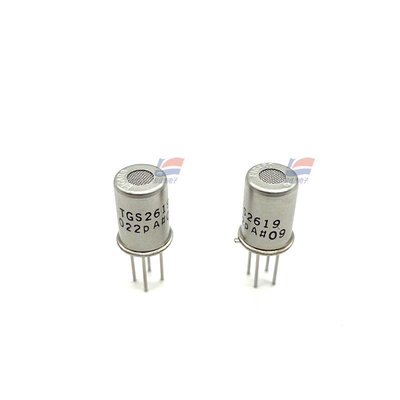

TGS2619 Gas sensor for detecting methane
Features:
* Low power consumption
* High sensitivity to methane gas
* Long service life, low cost
* Simple application circuit
Applications:
* Household gas leak alarm
* Portable gas detector
* Perform leak detection on gas facilities
TGS2619 has a high sensitivity to methane gas due to its resistance to volatile alcohol
Low sensitivity (common interference gases in residential environments) makes it an ideal sensor for home gas leak alarms. Due TO the small size of the sensor, the heater current of the TGS2619 is only 56mA, and the sensor detection part is housed in a standard TO-5 metal package.
The TGS2619-C00 is not only small in size, but also highly responsive. Ideal for gas leak detectors.
TGS2619-E00 is equipped with a filter housing that can eliminate the influence of interfering gases such as alcohol, and has a sensitive property of extremely selective methane gas. It is especially suitable for detecting appliances in complex atmosphere and demanding home environment, and is the ideal sensor for household gas leak detector
| Detection principle | Oxide semiconductor type |
| Standard package | TO-5 metal |
| Object gas | Methane, natural gas |
