Product Details:
|
| Model Number: | TGS 5042 | Target Gases: | Target Gases |
|---|---|---|---|
| Typical Detection Range: | 0 ~ 1000 Ppm | Output Current In CO: | Output Current In CO |
| Baseline Offset: | Baseline Offset | Operating Temperature: | Operating Temperature |
| Highlight: | Commercial Carbon Monoxide Gas Sensor,Residential Carbon Monoxide Gas Sensor |
||

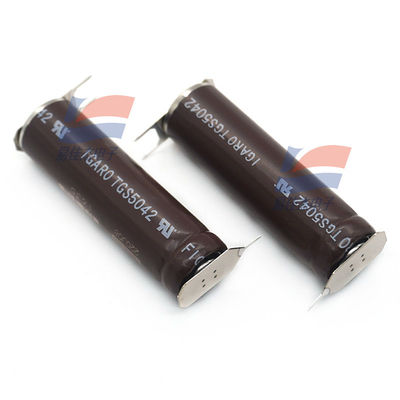

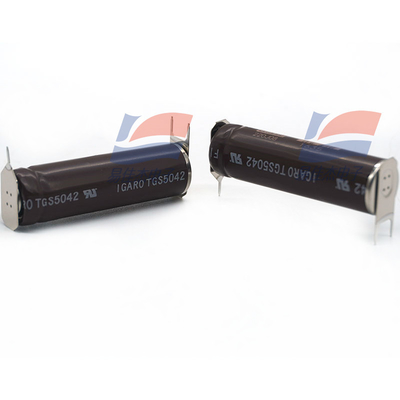

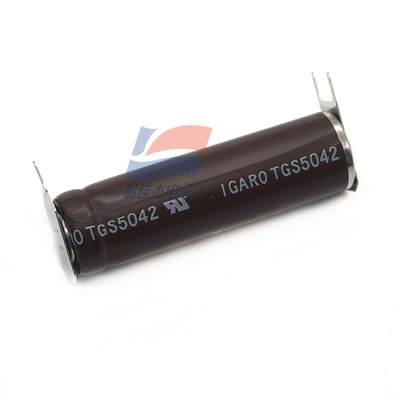

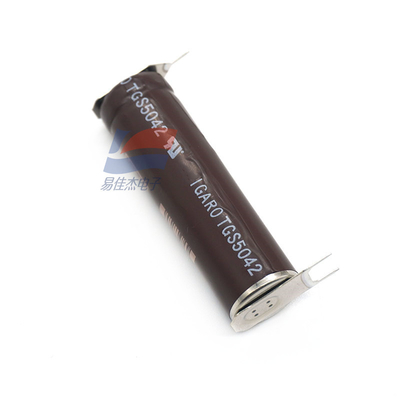

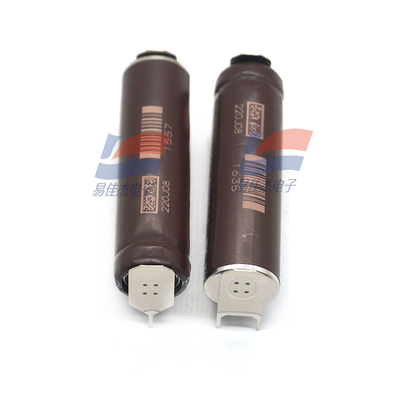

TGS5042 - for the detection of Carbon Monoxide
Features:
* Battery operable
* High repeatability/selectivity to
carbon monoxide (CO)
* Linear relationship between CO gas
concentration and sensor output
* Low sensitivity to ethanol
* Reduced influence by various interference gases
Applications:
* Residential and commercial CO detectors
* CO monitors for industrial applications
* Ventilation control for indoor parking garages
Figaro’s TGS5042 is a new electrochemical CO sensor possessing improved
characteristics. By using very low concentration alkaline electrolyte, integration of
an extremely small amount of noble metal catalyst into the catalyst layer, and
application of a separator, TGS5042 has the advantage of being more environmentally
friendly than traditional electrochemical sensors. Using a dry battery structure,
TGS5042 poses no risk of electrolyte leakage and offers characteristics superior to
those of traditional electrochemical CO sensors.
The figure below represents typical sensitivity characteristics,
all data having been gathered at standard test conditions (see
reverse side of this sheet). The Y-axis shows theoutput current
of the sensor (Iout/mA) in each gas. Output current is linear to CO
concentration, with a deviation of less than ±5% in the range of
0~500ppm.
| Operating temperature | -10 ~ +60°C |
| Operating humidity | 5 ~ 99%RH (no condensation) |
| Response time (T90) | within 60 seconds |
